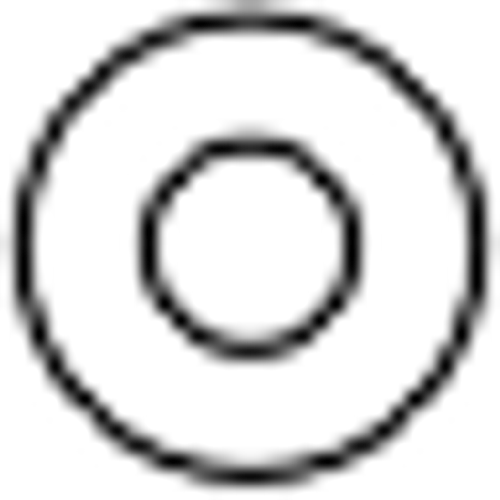

O Ring
Replacement OEM Part #P-12233/146180; 030.006.02/030-006-030; H98138; 450617
Industry Part #AS568-006 / 2-006
- 12 per package
- Material: EPDM, Hardness: 70 Duro
- .114" ID x .254" OD x .070" C/S
- See Service Tip below
- For System 1 (International Customers only), see Model Notes below.
- Control Block Kit (Major) (Part #ADK241)
- Control Block Kit (Minor) (Part #ADK257)
- O-Ring Kit (Part #RPK403)
- O-Ring Kit (Part #RPK404)
- O-Ring Kit (Part #SSK050)
Notes:
Service Tip: Before ordering replacement O-rings for the Fill-Vent Valve, please read the following: IF the stem is an OEM stem, and has (2) of the same sized O-rings, then you need (2) Part #RPO306. If the stem is an RPI stem, and has (2) different sized O-rings, then you need (1) Part #RPO306 and (1) Part #RPO307
Included in:
Model Notes:
For System 1 (International Customers only): Fits 89A1, 90A1, 90A2, 90B1, 99A1 & 99A2.
Fits: Solenoid Metering Screw/Air Manifold Assembly, Small In-Air Manifold, Quick Disconnect Barb (RPI Part #'s ADB248, ADB249, ADB250, & ADB251), & Quick Disconnect Plug (RPI Part #ADP232)
