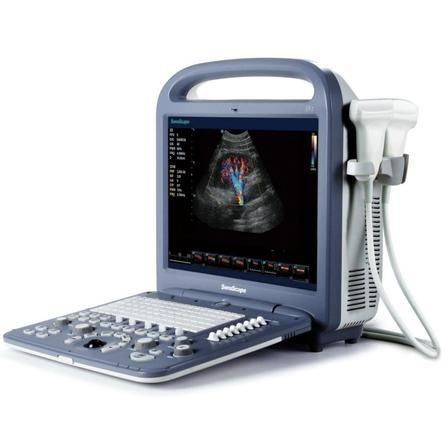

SonoScape S2 Portable Ultrasound System
The SonoScape S2 Portable Ultrasound System includes a carrying case and transducer of your choice.
The S2 is a low-mid range color doppler ultrasound system. It can operate as a shared service ultrasound machine, but is best known for its high-quality 2D images. Based on software 1.3.4.
Common Applications: 3D, 4D, abdominal, anesthesia, breast, cardiac, cardiovascular imaging, emergency medicine, general imaging, general radiology, OB/GYN, musculoskeletal, needle guidance, orthopedic imaging, pain management, peripheral vascular, rheumatology, small parts, superficial, thyroid, urology, vascular, and venous.
Features
- Hardware:
- 15" high resolution LCD color monitor provides clear image from any angle.
- Two active transducer connector sockets allow frequent changing of transducers.
- Built-in Li-ion battery lasts up to 2.5 hours (one hour scanning).
- Two USB 2.0 ports to export images to a memory device.
- 320 GB internal hard drive.
- VGA and S-Video output.
- Software:
- Imaging Modes: B / 2B / 4B / M / THI / CFM / DPI / PW.
- 2D, M-Mode.
- Freehand 3D Imaging.
- Real time 3D (4D): Thanks to high frame rate and advanced technologies, the 4D imaging of the S2 delivers smooth movement of the fetus and offers comprehensive 4D acquisition, data rendering, and post-processing functionality.
- PW / Color / Power Doppler.
- Panoramic Imaging.
- Compound Multibeam Imaging.
- 2D Speckle Reduction Imaging Technology (µ-Scan).
- DICOM 3.0: Transmission, worklist, print, MPPS, storage, and commitment.
- Triplex.
- Trapezoidal Imaging.
- Internal Workstation.
- Elastography.
- Excellent image quality.
- New patient file management for fast and efficient workflow enhances work efficiency.
- Intuitive User Interface: Clear system layout designed for convenient workflow, including menu-driven interface.
- Define Your Own Work-Style: Fully customized work settings for data table/graph, function keys, icons, formulas, measurement, report layout...all based on your own work style and habits.
- Clip-Board Function: Easy image review during scanning.
Specifications
| Transducer | Doppler Frequency | Radius | Specialty Uses |
| Linear Array L741 | 5 - 9 MHz* | 46 mm |
Vascular, small parts, musculoskeletal, etc. |
| Convex Array C344 | 2 - 6 MHz | R40 mm |
Abdominal, Obstetrics, Gynecology |
| Convex Array C354 | 2 - 6 MHz | R50 mm |
Abdominal, Obstetrics, Gynecology |
| Endovaginal 6V1 | 3 - 9 MHz | R11 mm |
Gynecology, Obstetrics, Urology |
| Phased Array 2P1 | 1.5 - 4.5 MHz | - |
Cardiac, Transcranial |
| Phased Array 5P1 | 3 - 8 MHz | - |
Cardiac, Transcranial, Pediatric |
| Volumetric Convex Array VC6-2 | 2 - 6 MHz | R40 mm |
Obstetrics, Gynecology, Abdominal |
SonoScape S2 Portable Ultrasound System Literature
