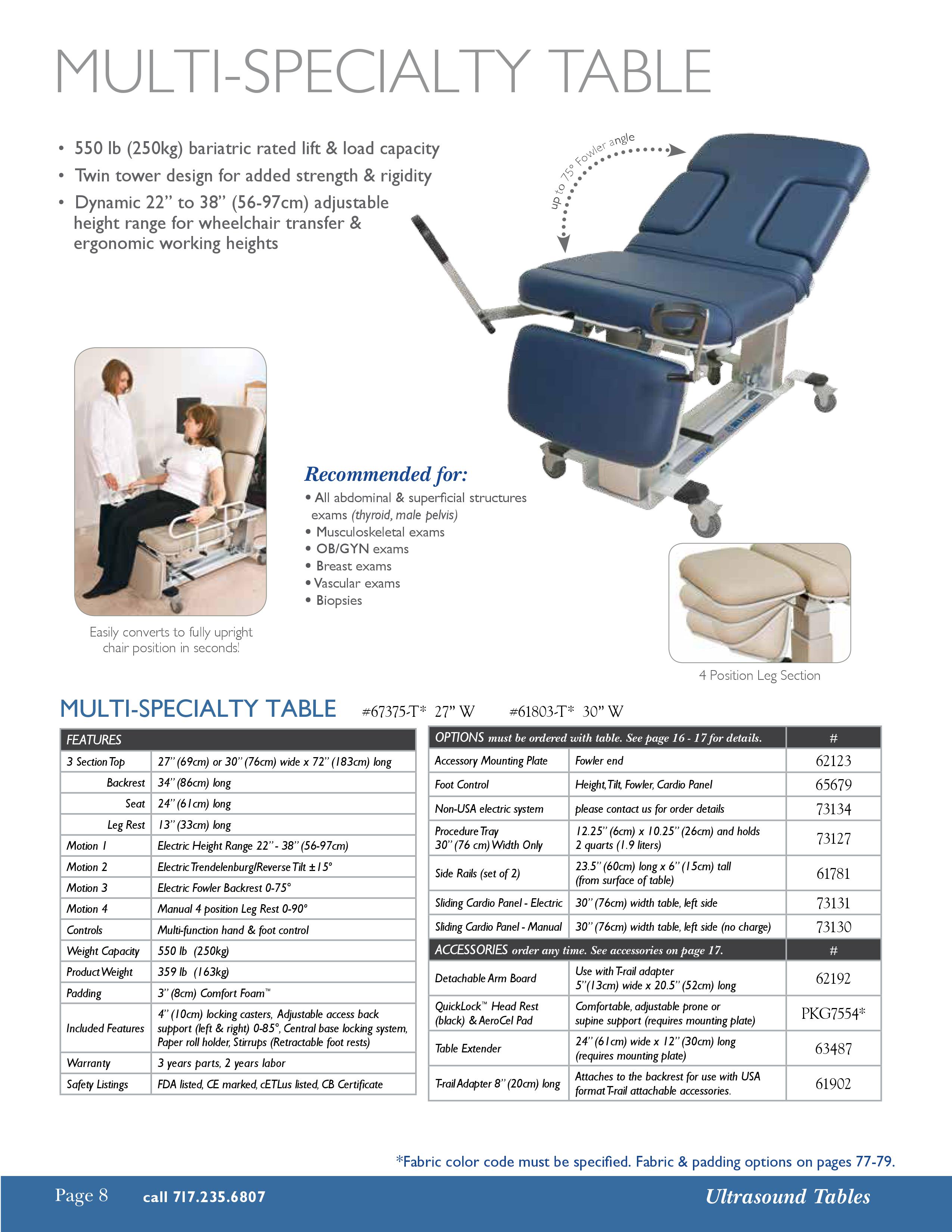

Oakworks Multi-Specialty Table

These models were designed to meet the needs of almost every kind of facility. You can add other options to create the perfect table for your specific requirements.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Feature rich design offers the versatility to customize each table to meet every modalities requirements
• Designed  by leading Ergonomic Specialists and exceeds industry standards for sonography
• Industry leading 3 year warranty
• 21 beautiful fabric colors available
• Dynamic 22" to 38" adjustable height range for safe wheelchair transfer and ergonomic working heights
• 550 lb bariatric rated lift and load capacity
• Twin tower design for added strength and rigidity
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• Super comfortable 3" padding system
• Trendelenburg and Reverse Trendelenburg
• FDA Listed, ETL Approved, CE Marked

Specifications:

• Patient Weight Capacity: 550 lbs (249 kg)
• Dynamic 19” - 33” (48-83cm) adjustable height range
• 30" (76 cm)
• Length: 72" (183 cm)
• Top: 3 section; Fowler - 34" (86 cm), Seat - 24" (61 cm), Foot - 13" (33 cm)
• Trendelenburg/Reverse Tilt: ±15°
• Standard Controls: 3 motion foot/3 motion hand
• Padding: 3" (8 cm) multi-layer
• Upholstery:  TerraTouch™ - over 20 colors
• Table Weight: 359 lbs. (163 kg.)
• Warranty: 3 years parts, 2 years labor
• Certifications: FDA listed, cETL approved, CE marked
• Included Features: Electric Fowler, Central base locking system, Hand control, Foot control, 4 position leg section, Adjustable access back support (Left & Right), Retractable foot rests (stirrups), 4" Locking Casters, Paper roll holder

Recommended for:

• All abdominal & superficial structures exams (thyroid, male pelvis)
• Musculoskeletal exams
• OB/GYN exams
• Breast exams
• Vascular exams
• Biopsies

Optional features:

• Side Rails(2)
• Procedure Tray (30 inch width table only)

Accessories:

• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks Multi-Specialty Table Manual
• Oakworks Multi-Specialty Table Specifications
• Oakworks Multi-Specialty Table Padding Brochure
• Oakworks Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
•
