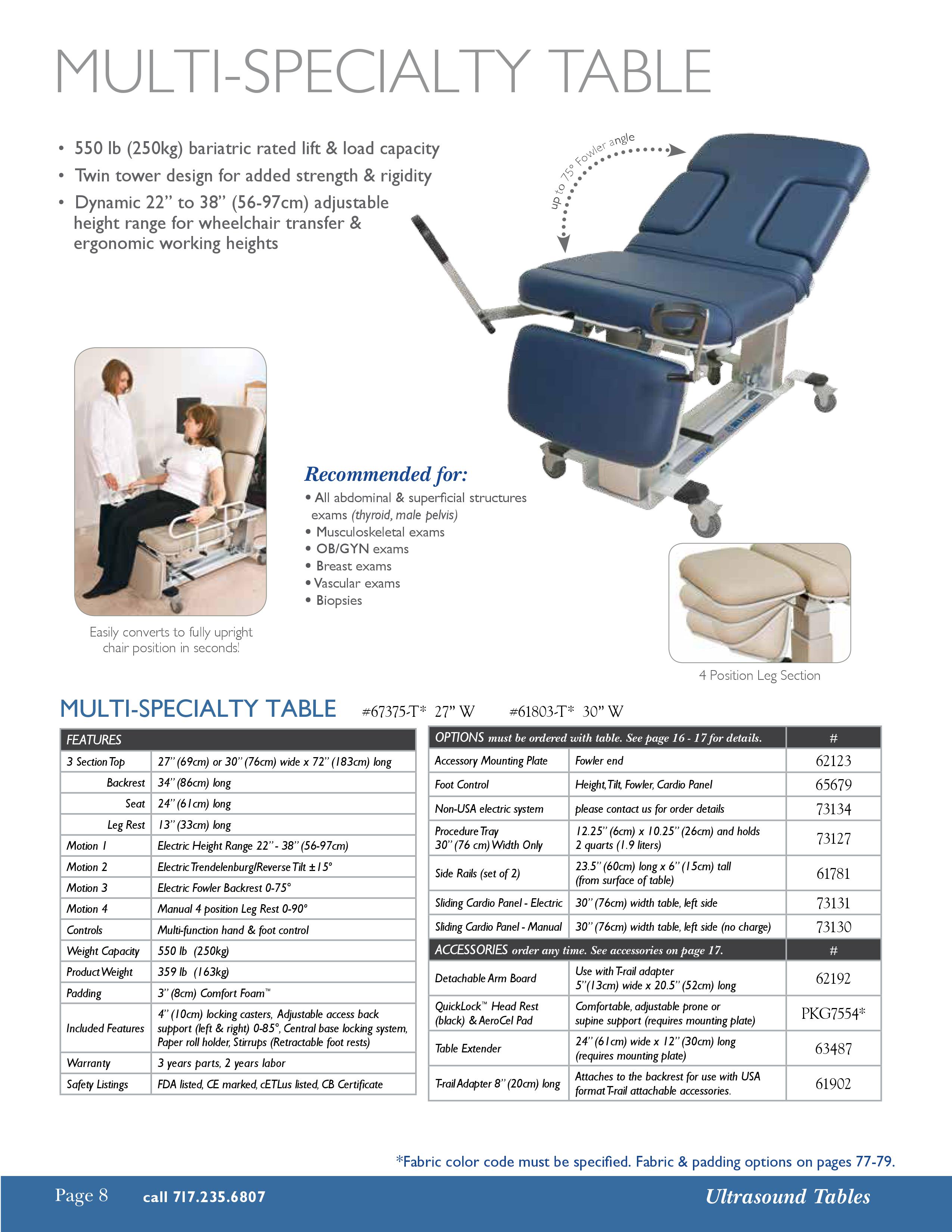

Oakworks Multi-Specialty Table

Oakworks Multi-Specialty Table — New

The Oakworks Multi-Specialty Table is a highly adaptable, medical-grade procedure table designed to support a wide range of clinical applications, including ultrasound imaging, general examinations, pain management, physical therapy, and diagnostic procedures. Manufactured by Oakworks, this table is engineered to deliver exceptional versatility, patient comfort, and long-term durability in busy clinical environments.

Built around a modular tabletop platform, the Multi-Specialty Table allows clinicians to configure positioning based on procedural needs while maintaining ergonomic access and workflow efficiency. Its robust construction, smooth height adjustment, and compatibility with clinical accessories make it an ideal solution for multi-disciplinary practices and outpatient facilities.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Feature rich design offers the versatility to customize each table to meet every modalities requirements
• Designed  by leading Ergonomic Specialists and exceeds industry standards for sonography
• Industry leading 3 year warranty
• 21 beautiful fabric colors available
• Dynamic 22" to 38" adjustable height range for safe wheelchair transfer and ergonomic working heights
• 550 lb bariatric rated lift and load capacity
• Twin tower design for added strength and rigidity
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• Super comfortable 3" padding system
• Trendelenburg and Reverse Trendelenburg
• FDA Listed, ETL Approved, CE Marked

Key Features

• Multi-Section Modular Tabletop
  Designed to accommodate a variety of procedures and patient positions, allowing flexibility across multiple specialties.

• Adjustable Backrest and Sectional Positioning
  Supports flat, semi-reclined, and upright positioning to improve clinician access and patient comfort.

• Smooth Height Adjustment
  Reliable lift mechanism enables ergonomic working height for providers and safe patient transfer.

• High-Density Comfort Padding
  Medical-grade foam upholstery enhances patient comfort during extended procedures while remaining easy to clean and disinfect.

• Stable, Low-Profile Base Design
  Engineered to minimize movement and vibration, ensuring patient safety and procedural stability.

• Accessory Compatibility
  Supports positioning aids, bolsters, straps, arm supports, and other clinical accessories as required for specialty workflows.

Positioning & Motion Capabilities

• Height Adjustment: Manual or electric lift (configuration dependent)

• Backrest Adjustment: Manual

• Tabletop Configuration: Multi-section articulated surface

• Base Configuration: Fixed, low-profile base

• Patient Transfer: Designed for safe ingress and egress

This flexibility allows the table to transition seamlessly between different clinical applications without requiring specialized equipment.

Specifications:

• Patient Weight Capacity: 550 lbs (249 kg)
• Dynamic 19” - 33” (48-83cm) adjustable height range
• 30" (76 cm)
• Length: 72" (183 cm)
• Top: 3 section; Fowler - 34" (86 cm), Seat - 24" (61 cm), Foot - 13" (33 cm)
• Trendelenburg/Reverse Tilt: ±15°
• Standard Controls: 3 motion foot/3 motion hand
• Padding: 3" (8 cm) multi-layer
• Upholstery:  TerraTouch™ - over 20 colors
• Table Weight: 359 lbs. (163 kg.)
• Warranty: 3 years parts, 2 years labor
• Certifications: FDA listed, cETL approved, CE marked
• Included Features: Electric Fowler, Central base locking system, Hand control, Foot control, 4 position leg section, Adjustable access back support (Left & Right), Retractable foot rests (stirrups), 4" Locking Casters, Paper roll holder

Technical Specifications

• Table Type: Multi-specialty exam and procedure table

• Tabletop Configuration: Modular / multi-section

• Upholstery: Medical-grade vinyl

• Weight Capacity: Up to 500 lbs

• Operation: Manual or electric (model-dependent)

Clinical Applications

• General medical examinations

• Ultrasound imaging

• Pain management and injection procedures

• Physical therapy and rehabilitation

• Diagnostic and specialty outpatient care

• Multi-specialty clinics and imaging centers

Recommended for:

• All abdominal & superficial structures exams (thyroid, male pelvis)
• Musculoskeletal exams
• OB/GYN exams
• Breast exams
• Vascular exams
• Biopsies

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 275 lbs

• Width: 30 inches

• Height: 34 inches (maximum height)

• Depth: 75 inches

These values are appropriate for room planning, shipping estimates, and consistent catalog presentation for new multi-specialty tables.

Optional features:

• Side Rails(2)
• Procedure Tray (30 inch width table only)

Accessories:

• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks Multi-Specialty Table?

The Oakworks Multi-Specialty Table offers a single-platform solution for facilities that need maximum procedural flexibility without compromising quality or comfort. Its adaptable design, proven Oakworks construction, and wide application range make it an excellent investment for practices seeking a new, reliable table capable of supporting multiple specialties.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks Multi-Specialty Table Manual
• Oakworks Multi-Specialty Table Specifications
• Oakworks Multi-Specialty Table Padding Brochure
• Oakworks Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
•
