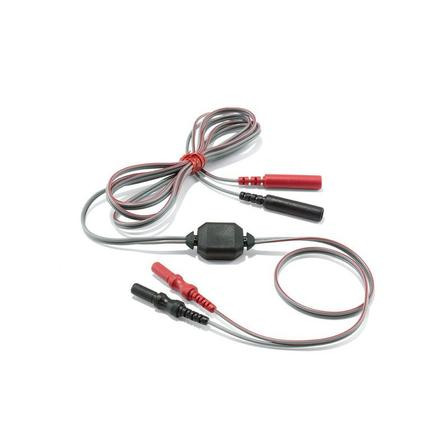

Dymedix TriplePlay FM1 Airflow Filtration Module - Universal (1.5 mm) (12-10120-0001)

Cevi Med#: CM28025

(No reviews yet)  |  Write a Review
Icon of shipping box.

Delivery by Cevi Med

Learn More
Icon of shipping box.

Price Match Guarantee

Learn More
Icon of shipping box.

Purchase Order

Learn More
Icon of shipping box.

Sales Tax Exemption

Learn More

Check out the deliveries we have made in the U.S.A.

Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

How do we load our trucks?

$144.10
MSRP: $195.00
Condition:
New
Availability:
5-7 Business Days
Estimated Shipping Date:
...
Warranty Information:
1 Year
Shipping:
$10.00
Icon of shipping box.

Delivery by Cevi Med

Learn More
Icon of shipping box.

Price Match Guarantee

Learn More
Icon of shipping box.

Purchase Order

Learn More
Icon of shipping box.

Sales Tax Exemption

Learn More

Check out the deliveries we have made in the U.S.A.

Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

How do we load our trucks?

About this item

Dymedix TriplePlay FM1 Airflow Filtration Module - Universal (1.5 mm)

      • All Dymedix Airflow Filtration Modules comply with AASM Technical Specifications.
      • For use with a Dymedix TriplePlay Airflow Sensor , disposable or reusable polyvinylidene fluoride  airflow sensors.
      • have one output with smooth waveforms focus on apnea - hypopnea events
      • Uses a more expanded frequency filtering into the waveform.
      • In Apnea - Hypopnea events, the changes in the airflow are easily identified.
      • This airflow filtration module is compatible with PSG systems
      • PVDF are more Sensitive temperature and pressure change (1,000 times faster)



Specifications

Product # Physical Size Shipping Dimensions Cable Length Weight Pcs/Pkg
12-10120-0001  0.75 (L), 0.25" (W), 0.5" (H 6" (L), 6" (W) 60" 1.2 oz 1/ea



Typical Polygraph Settings

Sensitivity

Low Frequency Filter High Frequency Filter
100 - 300 μV/mm 0.1 Hz 15 Hz



Typical Signal Amplitude

Cable Material

Typical Variation
Gray PVC insulation tinsel wire  1 mV peak to peak

Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.



Sensor Technology

Operating Conditions Storage Temperature Operating and Storage Humidity
PVDF sensor, ABS filtration module 40 - 104°F -4 - 140°F 5 - 95% (non-condensing)






1 Year
