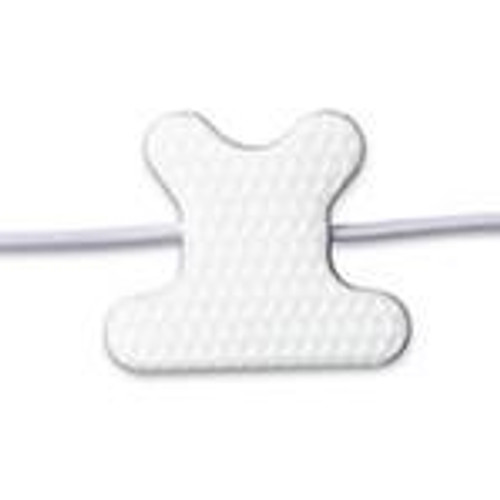

Dymedix TriplePlay Disposable Airflow Sensor - Medium (10-10000-0510)

Cevi Med#: CM15546

(No reviews yet)  |  Write a Review
Icon of shipping box.

Delivery by Cevi Med

Learn More
Icon of shipping box.

Price Match Guarantee

Learn More
Icon of shipping box.

Purchase Order

Learn More
Icon of shipping box.

Sales Tax Exemption

Learn More

Check out the deliveries we have made in the U.S.A.

Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

How do we load our trucks?

$97.13 - $505.63
Condition:
New
Availability:
5-7 Business Days
Estimated Shipping Date:
...
Warranty Information:
1 Year
Shipping:
$10.00
Part Number:
10-10000-0510

Icon of shipping box.

Delivery by Cevi Med

Learn More
Icon of shipping box.

Price Match Guarantee

Learn More
Icon of shipping box.

Purchase Order

Learn More
Icon of shipping box.

Sales Tax Exemption

Learn More

Check out the deliveries we have made in the U.S.A.

Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

How do we load our trucks?

About this item

Dymedix TriplePlay Disposable Airflow Sensor - Medium

      •  Medium
      • (PVDF) airflow sensor that comes in a pack (10 or 50)
      • PVDF permanent electrical charge and instantaneously generates a voltage when presents changes (temperature- pressure- force- vibrations-sound)
      • Sensor soft and flexible sensor have an oral / nasal design
      • PVDF is much more flexible and responsive to sleep-related physiological
      • PVDF are more Sensitive temperature and pressure change (1,000 times faster)
      • Dymedix TriplePlay™ Airflow sensors detect three types of sleep disordered breathing events with only one sensor; Apnea, Hypopnea and UARS
      • All Dymedix Airflow sensors are AASM compliant.



Specifications

Product # Physical Size Shipping Dimensions Cable Length Weight Pcs/Pkg
10-10000-0510 1" (H), 1.2" (W)

9" (L), 6" (W)

24"

.2 oz

Pack of 10

10-10000-0550 1" (H), 1.2" (W)

12" (L), 10" (W)

24"

 10 oz.

Pack of 50



Typical Polygraph Settings

Sensitivity

Low Frequency Filter High Frequency Filter
100 - 300 μV/mm 0.1 Hz 15 Hz



Typical Signal Amplitude

Cable Material

Typical Variation
Gray PVC insulation tinsel wire  1 mV peak to peak

Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics.



Sensor Technology

Operating Conditions Storage Temperature Operating and Storage Humidity
PVDF sensor, ABS filtration module 40 - 104°F -4 - 140°F 5 - 95% (non-condensing)






1 Year
