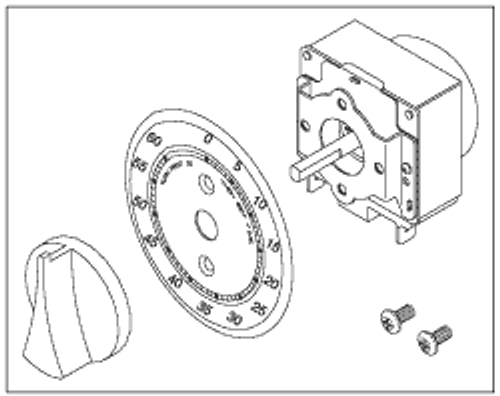

Time Switch (60 Min)
Replacement OEM Part #H284667-1 / 11521
- 60 Minutes, Bell Alert
- 20A @ 125VAC / 10A @ 250VAC SPST
- Shaft: 3/16" dia. x 11/16" lg. Double Flat
- Size: 1-7/8" x 1-7/8" x 1-1/2" DP
- Mount: 2 Hole - # 6-32 @ 1-1/8" apart
- Includes: (2) each 1/4" Male Tab; (1) Knob (Part #RPK213)
Notes: Will not work in conjunction with machines that utilize an independent buzzer.
Use Timer Kit (30 Min) (Part #RCK116) if you need a timer with an independent buzzer.
90 Days
