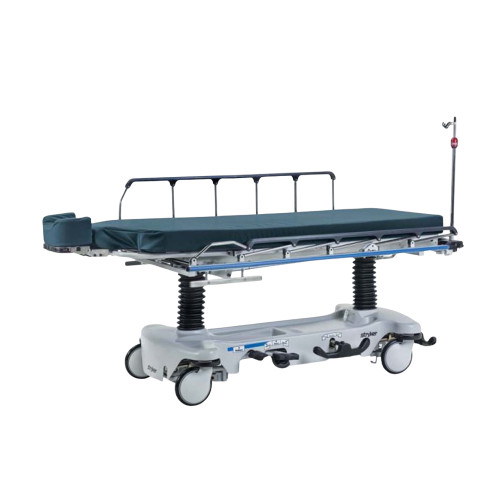

Stryker Eye Surgery Stretcher - Refurbished

All Stryker Eye Surgery Stretcher models include a new mattress top (IV pole pictured is sold separately). It is certified to proper operating specifications and in excellent condition.

Warranty: 1 Year - Parts and Labor.

The Stryker Eye Surgery Stretcher offers exceptional head-end clearance, giving surgeons ample leg room to maneuver while performing delicate eye procedures.

Enhanced clearance for surgeon access is ideal for either superior or temporal approach. The dual articulating headpiece maximizes surgical access by allowing caregivers to place the head section in virtually any position. Positioning controls tuck neatly within the headpiece. Solid steel rings clamp down over all four wheels to help ensure a firmly-locked work surface.

Stryker Eye Surgery Stretcher Features

Performance:
Enhanced clearance and dual-articulating headpiece maximizes surgical access.
Ideal for either superior or temporal approach.
Positioning controls tuck neatly within the headpiece and allow full articulation.

Accessibility:

• Dual cylinder pneumatic backrest is manually controlled.
• Dual pedestal hydraulics controls.
• Fold-down collapsible side rails.
• Four IV receptacles.
• Central locking-brakes with foot-end brake and steer pedal.
• Hands-free Trendelenburg/Reverse Trendelenburg.
• Integrated storage tray with oxygen bottle holder.
• Retractable fifth-wheel steering.
• Rubber bumpers at the foot end.
• Stationary foot-end litter.
• 8" (20 cm) Omni Surface casters with wheel covers.

Specifications

• Overall Length:
• Model 1068: 88" (224 cm).
• Model 1069, 1079, and 1089: 90" (229 cm).
• Overall Width: (side rails up): 31.5" (80 cm).
• Maximum Weight Capacity: 500 lbs (228 kg).
• Height Range:
• Model 1068:
• High: 36" (91 cm).
• Low: 22.5" (57.15 cm).
• Model 1069:
• High: 36" (90 cm).
• Low: 22.5" (56 cm).
• Model 1079 and 1089:
• High: 34" (86.4 cm).
• Low: 22.25" (56.5 cm).
• Litter Positioning:
• Backrest (Fowler Angle): 0°-90°.
• Trendelenburg/Reverse Trendelenburg: ±18°.

Knee Gatch:

• Model 1068: 0°-35°.
• Model 1069, 1079, and 1089: 0°-30°.

Patient Surface:

• Model 1068: 26" x 88" (66 x 224 cm).
• Model 1069, 1079, and 1089: 26" x 87" (66 x 221 cm).
• Side rails: 13" x 55" (33 cm x 140 cm).
• Caster Diameter: 8" (20 cm).

Head Piece Height Adjustment:

• Model 1068: ±3°.
• Model 1069, 1079, and 1089: ±4.5".
• Head Piece Tilt: ±45°.

Options:

• 1068 88" (224 cm) 36" 22.50" 0°-35° 26" x 88" 1993 - 2000
• 1069 90" (229 cm) 36" 22.50" 0°-30° 26" x 87" 1998 - 2007
• 1079 90" (229 cm) 34" 22.25" 0°-30°26" x 87" 2006 - 2010
• 1089 90" (229 cm) 34" 22.25" 0°-30° 26" x 87" 2010 - Current

Regarding Refurbished Medical Equipment:

• Tables are disassembled then rebuild with the installation of new parts.
• Refurbished tables are not new, rather they are equipment that allow doctors to save money while maintaining professionalism with the use of a presentable product. They do, however, have new upholstery, new paint, and are in working condition.
• Stock pictures are used to showcase our quality of craftsmanship. All work in our warehouse is custom to meet our customers needs allowing doctors to differentiate from the initial look seen in stock images.
• If you would prefer a referral from a doctor in your area, please feel free to ask and we will connect you with a previous customer that can give you feedback from their experience with purchasing from Cevi Med.
• Check out our Portfolio to see hundreds of exam tables that we have sold since our beginning

Please give us a call at (833-238-4633) or email us at sales@cevimed.com if you have any questions! If you feel concerned about trusting Cevi Med with your exam table purchase contact us and ask us for our Portfolio see the 1000's of exam tables we have done over the years.

How to make a damage claim?

Products or parts damaged in shipping are typically replaced depending on the condition and the damage. Our packing stage has improved over the years to virtually avoid all possibility of damage. In the event that the product you received was damaged you may make a claim by contacting customer service at (833-238-4633) or by emailing us at admin@cevimed.com. We will then contact you to determine how we can provide a solution to the damaged product.

How to make a warranty claim?

In the event that a warranty claim is needed, customers are asked to call (833-238-4633) or email us at admin@cevimed.comregarding their claim. We will then try to troubleshoot directly with you to resolve the issue. If we are unable to assist by providing a solution from our facility, we will contact a technician in your area to meet at your office to diagnose and repair the product.

Stryker Eye Surgery Resources

• Stryker 1068 Eye Surgery Stretcher Maintenance Manual
• Stryker 1068 Eye Surgery Stretcher Operations Manual
• Stryker 1069 Eye Surgery Stretcher Maintenance Manual
• Stryker 1069 Eye Surgery Stretcher Operations Manual
• Stryker 1079 Eye Surgery Stretcher Maintenance Manual
• Stryker 1079 Eye Surgery Stretcher Operations Manual
• Stryker 1089 Eye Surgery Stretcher Maintenance Manual
• Stryker 1089 Eye Surgery Stretcher Operations Manual
