Oakworks Womens Imaging Table

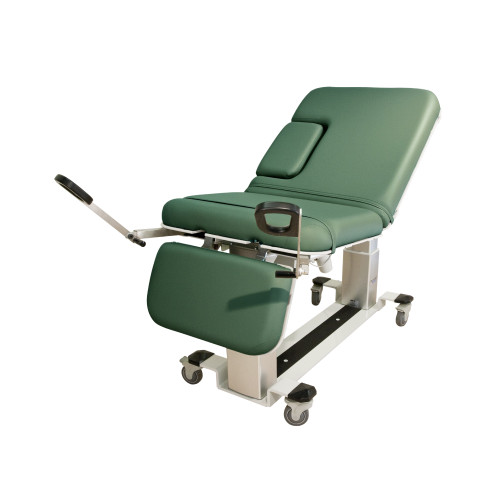

Oakworks Women’s Imaging Table — New

The Oakworks Women’s Imaging Table is a purpose-built diagnostic table designed to support women’s health imaging, OB/GYN examinations, breast ultrasound, pelvic imaging, and general diagnostic procedures. Manufactured by Oakworks, this table is engineered to prioritize patient comfort, ergonomic clinician access, and reliable performance in women’s imaging environments.

Designed with features that accommodate sensitive positioning requirements, the Women’s Imaging Table supports accurate image acquisition while helping reduce patient discomfort during extended diagnostic exams. Its stable base, premium upholstery, and adaptable positioning make it well suited for hospitals, outpatient imaging centers, and specialty women’s health clinics.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Full featured 3 section table top design for  all Women’s Imaging ultrasound modalities
• Designed  by leading Ergonomic Specialists and exceeds industry standards for sonography
• Industry leading 3 year warranty
• 21 beautiful fabric colors available
• Dynamic 22" to 38" adjustable height range for safe wheelchair transfer and ergonomic working heights
• 550 lb bariatric rated lift and load capacity
• Twin tower design for added strength and rigidity
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• Super comfortable 3" padding system
• Trendelenburg and Reverse Trendelenburg
• FDA Listed, ETL Approved, CE Marked

Key Features

• Women’s Health–Optimized Tabletop Design
  Designed to support OB/GYN and women’s imaging workflows, allowing comfortable and accurate patient positioning.

• Adjustable Backrest / Fowler Positioning
  Supports flat, semi-reclined, and upright positions to accommodate a wide range of imaging and diagnostic procedures.

• Smooth Height Adjustment
  Reliable lift system allows clinicians to adjust table height for ergonomic scanning and safe patient transfer.

• High-Density Comfort Padding
  Medical-grade foam upholstery enhances patient comfort during longer exams while remaining easy to clean and disinfect.

• Stable, Low-Profile Base Construction
  Minimizes movement during imaging, improving diagnostic accuracy and patient safety.

• Accessory Compatibility
  Supports positioning aids, stirrups (configuration dependent), bolsters, and straps commonly used in women’s imaging exams.

Positioning & Motion Capabilities

• Height Adjustment: Manual or electric lift (configuration dependent)

• Backrest Adjustment: Fowler backrest (manual)

• Tabletop Configuration: Multi-position diagnostic surface

• Patient Transfer: Designed for safe and efficient ingress and egress

This configuration supports efficient workflow while maintaining patient dignity and comfort.

Recommended for:

• All abdominal & superficial structures exams
• OB/GYN exams
• Musculoskeletal exams
• Vascular exams
• Biopsies

Clinical Applications

• Women’s diagnostic imaging

• OB/GYN ultrasound

• Pelvic and abdominal imaging

• Breast ultrasound procedures

• Hospital women’s health departments

• Outpatient imaging and diagnostic centers

Specifications:

• Patient Weight Capacity: 550 lbs. (272 kg.)
• Height Range: 22" - 38" (56-97 cm)
• Width: 27" (69 cm) or 30" (76 cm)
• Length: 72" (183 cm)
• Top: 3 section; Fowler - 34" (86 cm), Seat - 24" (61 cm), Foot - 13" (33 cm)
• Trendelenburg/Reverse Tilt: ±15°
• Standard Controls: 3 motion hand
• Padding: 3" (8 cm) multi-layer
• Upholstery:  TerraTouch™ - over 20 colors
• Table Weight: 359 lbs. (163 kg.)
• Warranty: 3 years parts, 2 years labor
• Certifications: FDA listed, cETL approved, CE marked
• Included Features: Electric Fowler, Hand control, 4 position leg section, Adjustable access back support (Right), Retractable foot rests (stirrups), 4" Locking Casters, Paper roll holder

Technical Specifications

• Table Type: Women’s imaging / diagnostic table

• Configuration: Adjustable backrest (Fowler-style)

• Upholstery: Medical-grade vinyl

• Weight Capacity: Up to 500 lbs

• Operation: Manual or electric (model-dependent)

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 280 lbs

• Width: 30 inches

• Height: 34 inches (maximum height)

• Depth: 75 inches

These values are appropriate for room planning, shipping estimates, and consistent catalog presentation for new women’s imaging tables.

Accessories:

• Detachable Arm Board (84943) Use with T-rail adapter 5”(13cm) wide x 20.5” (52cm) long
• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks Women’s Imaging Table?

The Oakworks Women’s Imaging Table offers a specialized balance of patient-centered design, diagnostic accuracy, and Oakworks durability. Its thoughtful positioning options, stable construction, and comfort-focused features make it an excellent choice for facilities seeking a new, dependable table tailored to women’s imaging and diagnostic care.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks Womens Imaging Table Manual
• Oakworks Womens Imaging Table Specifications
• Oakworks Womens Imaging Table Padding Brochure
• Oakworks Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
