Oakworks Vascular Table

Oakworks Vascular Table with Fowler Configuration — New

The Oakworks Vascular Table with Fowler Configuration is a specialized diagnostic and procedure table designed to support vascular ultrasound, Doppler studies, venous and arterial exams, and general diagnostic imaging. Manufactured by Oakworks, this table is engineered to provide optimal patient positioning, clinician access, and long-term reliability in vascular labs and imaging suites.

Equipped with a Fowler backrest, this table allows patients to be positioned upright, semi-reclined, or flat—an essential requirement for accurate vascular assessments and patient comfort during extended exams. Its stable base, premium upholstery, and smooth height adjustment make it a dependable solution for high-volume vascular and diagnostic environments.

Warranty:

• 3 years parts
• 2 years labor

The Vascular EA Table has a very stable double pedestal design with small footprint and large height range that supports great ergonomics for sonographers and patient safety.

Features and Benefits

• Dual towers & electric fowler makes 70° reverse Trendelenburg a reality
• Safely position clients for Venous Reflux studies
• Split foot board design allows non-weight bearing exams and fold down out of the way for carotid artery exams
• Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Key Features

• Fowler Backrest Configuration
  Adjustable back section supports upright and semi-reclined positioning, ideal for venous reflux studies, carotid exams, and peripheral vascular imaging.

• Vascular-Optimized Tabletop Design
  Provides ample surface area and stability for precise probe placement and consistent diagnostic imaging.

• Smooth Height Adjustment
  Reliable lift system allows clinicians to adjust working height for ergonomic scanning and safe patient transfer.

• High-Density Comfort Padding
  Medical-grade foam upholstery enhances patient comfort during prolonged vascular examinations.

• Stable, Low-Profile Base Construction
  Minimizes movement during imaging, improving diagnostic accuracy and patient safety.

• Accessory Compatibility
  Supports positioning aids, arm supports, straps, and bolsters commonly used in vascular studies.

Positioning & Motion Capabilities

• Height Adjustment: Manual or electric lift (configuration dependent)

• Backrest Adjustment: Fowler backrest (manual)

• Tabletop Motion: Fixed base with adjustable back section

• Patient Transfer: Designed for safe ingress and egress

This configuration supports efficient workflow while maintaining simplicity and reliability in daily vascular imaging operations.

Clinical Applications

• Vascular ultrasound and Doppler studies

• Venous reflux and arterial exams

• Carotid imaging

• Diagnostic imaging departments

• Vascular labs and outpatient imaging centers

Materials Included

• 4 in. (10 cm) locking casters
• Integrated foot board (split, drop away)
• Paper Roll Holder
• Patient Safety Strap
• Side rails (2) 23.5 in. (64cm) long x 6 in. (15cm) tall (from surface of table)
• User manual

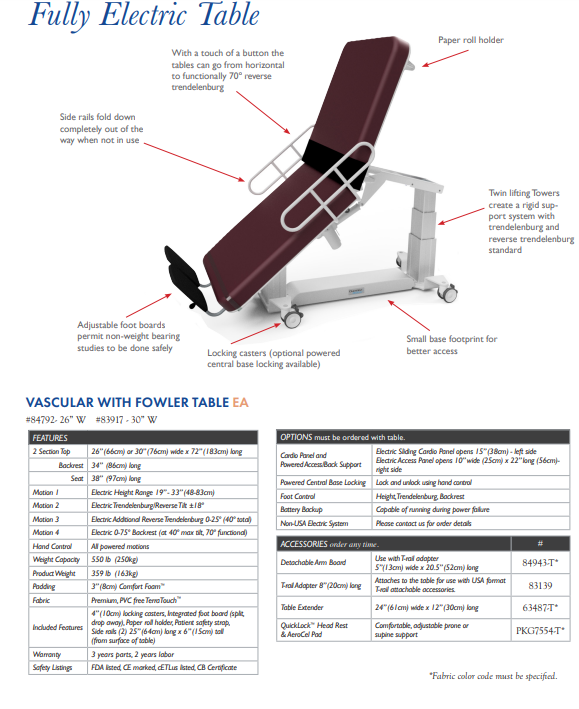

Technical Specifications

• 2 Section Top - 26 in. (66 cm) or 30 in. (76cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 38 in. (97cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Additional Reverse Trendelenburg 0-25° (40° total)
• Motion 4 - Electric 0-75° Backrest (at 40° max tilt, 70° functional)
• Controls - Multi-function hand control
• Weight Capacity - 550lb (250kg)
• Product Weight - 359lb (163kg)
• Removable Padding System - 3 in. (8cm) Comfort Foam™
• Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate
• Table Type: Vascular / diagnostic ultrasound table
• Configuration: Fowler backrest
• Upholstery: Medical-grade vinyl
• Weight Capacity: Up to 500 lbs
• Operation: Manual or electric (model-dependent)

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 270 lbs

• Width: 30 inches

• Height: 34 inches (maximum height)

• Depth: 75 inches

These values are appropriate for room planning, shipping estimates, and consistent catalog presentation for new vascular and diagnostic tables.

Accessories:

• Detachable Arm Board (84943) Use with T-rail adapter 5”(13cm) wide x 20.5” (52cm) long
• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks Vascular Table with Fowler?

The Oakworks Vascular Table with Fowler Configuration delivers a purpose-built balance of diagnostic accuracy, patient comfort, and clinician ergonomics. Its adjustable backrest, stable construction, and Oakworks-quality materials make it an excellent choice for facilities seeking a new, reliable vascular imaging table designed for everyday clinical use.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks Vascular Table Manual
• Oakworks Vascular Table Padding Brochure
• Oakworks Vascular Table Vascular Exam Table Whitepaper
• Oakworks Vascular Table Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
