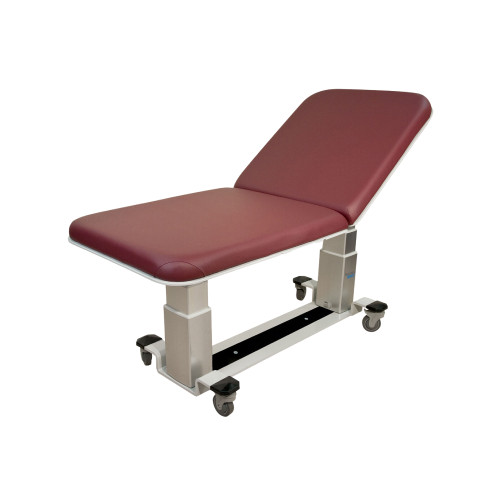

Oakworks General 2 Table with Fowler Ultrasound Table

Oakworks General 2 Table with Fowler Ultrasound Configuration — New

The Oakworks General 2 Table with Fowler Ultrasound Configuration is a versatile, medical-grade procedure table designed for ultrasound imaging, general examinations, diagnostic procedures, and outpatient clinical use. Manufactured by Oakworks, this table combines modular positioning, patient comfort, and durable construction to support a wide range of clinical workflows.

Configured with a Fowler backrest, this model allows patients to be positioned upright or semi-reclined—ideal for abdominal, vascular, OB/GYN, and general ultrasound applications. The General 2 platform is known for its flexibility, offering smooth manual adjustments, excellent stability, and compatibility with imaging accessories commonly used in diagnostic environments.

Warranty:

• 3 years parts
• 2 years labor

Features:

• 2 Section Top - 30 in. (76 cm) or 26 in. (66 cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 38 in. (97cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Fowler Backrest 0-75°
• Controls - Multi-function hand control
• Weight Capacity - 550lb (250kg)
• Product Weight - 359lb (163kg)
• Removable Padding System - 3 in. (8cm) Comfort Foam ™
• Included Features - 4 in. (10cm) locking casters, Paper roll holder
• Warranty - 3 years parts, 2 years labor

Key Features

• Fowler Backrest Configuration
  Adjustable back section allows upright and semi-reclined positioning, improving patient comfort and clinician access during ultrasound exams.

• Multi-Section Tabletop Design
  Supports flexible patient positioning for a variety of diagnostic and general medical procedures.

• Manual Height Adjustment
  Smooth, reliable lift system allows clinicians to adjust table height for ergonomic scanning and patient transfer.

• High-Density Comfort Padding
  Medical-grade foam upholstery enhances patient comfort during extended imaging or examination sessions.

• Stable, Rigid Base Construction
  Engineered to minimize movement during imaging, ensuring consistent image quality and patient safety.

• Accessory Compatibility
  Supports ultrasound positioning aids, straps, bolsters, and other diagnostic accessories as needed.

Positioning & Motion Capabilities

• Height Adjustment: Manual lift

• Backrest Adjustment: Fowler backrest (manual)

• Tabletop Motion: Fixed base with adjustable sections

• Patient Transfer: Designed for safe ingress and egress

This configuration supports efficient workflow while maintaining simplicity and reliability.

Clinical Applications

• Ultrasound imaging (abdominal, vascular, OB/GYN)

• General medical examinations

• Diagnostic procedures

• Outpatient clinics and imaging centers

• Hospital exam and procedure rooms

Recommended for:

• All abdominal & superficial structures exams
• Musculoskeletal exams
• Vascular exams
• Biopsies

Specifications:

• Patient Weight Capacity: 550 lbs. (272 kg.)
• Height Range: 22" - 38" (56-97 cm)
• Width: 27" (69 cm) or 30" (76 cm)
• Length: Fowler - 34" (86 cm), Seat - 38" (97 cm)
• Trendelenburg/Reverse Tilt: ±15°
• Standard Controls: 3 motion hand
• Padding: 3" (8 cm) multi-layer
• Table Weight: 359 lbs. (163 kg.)
• Warranty: 3 years parts, 2 years labor
• Certifications: FDA listed, cETL approved, CE marked
• Included Features: Electric Fowler, Hand control, 4" Locking Casters, Paper roll holder

Technical Specifications

• Table Type: General exam / ultrasound table

• Configuration: Fowler backrest

• Upholstery: Medical-grade vinyl

• Weight Capacity: Up to 500 lbs

• Operation: Manual positioning

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 250 lbs

• Width: 30 inches

• Height: 34 inches (maximum height)

• Depth: 73 inches

These measurements are appropriate for room planning, shipping estimates, and consistent catalog presentation for new diagnostic tables.

Accessories:

• Detachable Arm Board (84943) Use with T-rail adapter 5”(13cm) wide x 20.5” (52cm) long
• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (61902) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks General 2 with Fowler Ultrasound Configuration?

The Oakworks General 2 Table with Fowler Ultrasound setup delivers a dependable balance of patient comfort, clinician ergonomics, and procedural versatility. Its adjustable backrest, stable design, and Oakworks build quality make it an excellent choice for facilities seeking a reliable, multipurpose ultrasound and exam table in a new-condition offering.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Oakworks General 2 Resources

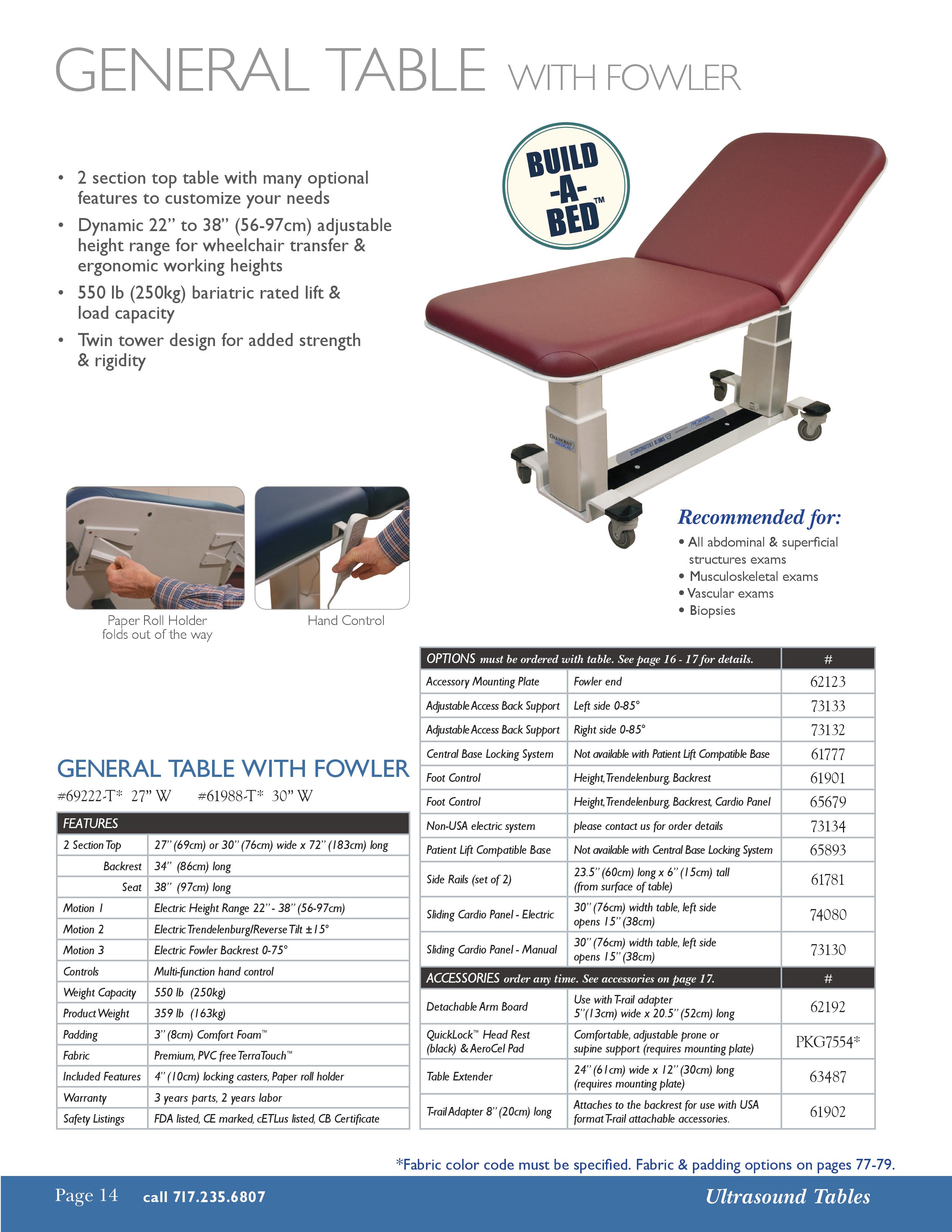

• Oakworks General Table with Fowler Ultrasound Table Manual
• Oakworks General Table with Fowler Ultrasound Table Specifications
• Oakworks General Table with Fowler Ultrasound Table Padding Brochure
• Oakworks General Table with Fowler Ultrasound Table Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
