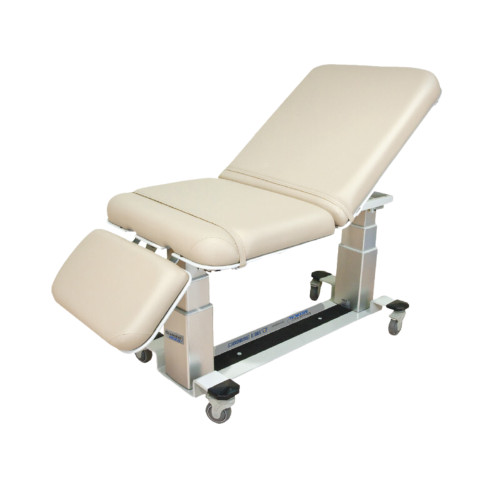

Oakworks General 3 Section Top Ultrasound Table

Oakworks General 3-Section Top Ultrasound Table — New

The Oakworks General 3-Section Top Ultrasound Table is a versatile, medical-grade diagnostic table designed to support ultrasound imaging, general examinations, and a wide range of outpatient diagnostic procedures. Manufactured by Oakworks, this table delivers exceptional flexibility through its three-section articulated design, allowing clinicians to position patients accurately while maintaining comfort and workflow efficiency.

The three-section tabletop enables independent adjustment of the head, center, and leg sections, making this table ideal for abdominal, vascular, OB/GYN, and general ultrasound applications. Built with Oakworks’ renowned structural integrity and premium upholstery, the General 3-Section Top Ultrasound Table is well suited for high-volume clinical environments that require reliability, adaptability, and patient-centered design.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Designed for use as exam chair or table with many options to customize the table to fit your needs
• Designed by leading Ergonomic Specialists and exceeds the “Industry Standards for Sonography”
• Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer
• 3 Section Top - 30 in. (76 cm) or 26 in. (66cm) wide x 72 in. (183 cm) long
• Backrest - 34 in. (86 cm) long
• Seat - 26 in. (66cm) long
• Leg Rest - 11 in. (28cm) long
• Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
• Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
• Motion 3 - Electric Fowler Backrest 0-75°
• Motion 4 - Electric Leg Rest 0-90°
• Controls - Multi-function hand control
• Weight Capacity - 550lb (250kg)
• Product Weight - 359lb (163kg)
• Removable Padding System - 3 in. (8cm) Comfort Foam ™
• Included Features - 4 in. (10cm) locking casters, Paper roll holder

Key Features

• Three-Section Articulated Tabletop
  Independent sections allow flexible patient positioning for a wide range of ultrasound and diagnostic procedures.

• Adjustable Backrest and Leg Section
  Supports upright, semi-reclined, and flat positioning to enhance imaging access and patient comfort.

• Smooth Height Adjustment
  Reliable lift mechanism allows clinicians to adjust working height for ergonomic scanning and safe patient transfer.

• High-Density Comfort Padding
  Medical-grade foam and upholstery provide comfort during extended imaging sessions while remaining easy to clean and disinfect.

• Stable, Low-Profile Base
  Rigid base design minimizes movement during imaging, ensuring consistent image quality and patient safety.

• Accessory Compatibility
  Supports ultrasound positioning aids, bolsters, straps, and other diagnostic accessories commonly used in imaging suites.

Positioning & Motion Capabilities

• Height Adjustment: Manual lift system

• Backrest Adjustment: Manual (upper section)

• Leg Section Adjustment: Manual (lower section)

• Tabletop Configuration: Three-section articulated surface

• Patient Transfer: Designed for safe ingress and egress

This configuration allows clinicians to tailor patient positioning precisely without adding mechanical complexity.

Clinical Applications

• Ultrasound imaging (abdominal, vascular, OB/GYN)

• General diagnostic examinations

• Outpatient imaging centers

• Hospital exam and procedure rooms

• Multi-specialty clinics

Recommended for:

• All abdominal & superficial structures exams
• OB/GYN exams (limited use with endovaginal exams)
• Musculoskeletal exams
• Vascular exams
• Biopsies

Technical Specifications

• Table Type: General exam / ultrasound table

• Tabletop Configuration: 3-section articulated top

• Upholstery: Medical-grade vinyl

• Weight Capacity: Up to 500 lbs

• Operation: Manual positioning and height adjustment

Backend Entry Fields (for your product form)

Use the following values directly in your backend fields:

• Weight: 260 lbs

• Width: 30 inches

• Height: 34 inches (maximum height)

• Depth: 75 inches

These values are appropriate for room planning, shipping estimates, and consistent catalog presentation for new diagnostic and ultrasound tables.

Accessories:

• QuickLock™ Head Rest (black) & AeroCel Pad (PKG7554) Comfortable, adjustable prone or supine support (requires mounting plate)
• Table Extender (63487) 24” (61cm) wide x 12” (30cm) long (requires mounting plate)
• T-rail Adapter 8” (20cm) long  (83139) Attaches to the backrest for use with USA format T-rail attachable accessories.

Why Choose the Oakworks General 3-Section Top Ultrasound Table?

The Oakworks General 3-Section Top Ultrasound Table provides a dependable combination of positional flexibility, patient comfort, and long-term durability. Its articulated tabletop design supports a broad range of imaging workflows while maintaining the simplicity and reliability clinics expect from Oakworks. It is an excellent choice for facilities seeking a new, versatile ultrasound table built for everyday clinical use.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Oakworks General 3 Resources

• Oakworks General 3 Manual
• Oakworks General 3  Specifications
• Oakworks General 3  Padding Brochure
• Oakworks General 3 Finishes and Fabric Options Brochure
• White Paper - The Value of Ergonomic Exam Tables In Sonography
• White Paper - Exam Tables - An Important Component of the Sonography Work Environment
