Oakworks CFUR401 Urology Table

Oakworks CFUR401 Urology Table (75215-T01)

The Oakworks CFUR401 Urology Table (Model 75215-T01) is a premium, high-capacity urology and imaging table engineered for advanced urologic procedures, cystoscopy, fluoroscopy-guided imaging, and minimally invasive interventions. Manufactured by Oakworks, the CFUR401 represents an enhanced configuration within the CFUR series, offering expanded patient support, exceptional radiolucency, and precise positioning control for demanding clinical environments.

This model features a carbon fiber radiolucent tabletop optimized for imaging clarity and urology workflows, combined with a cantilevered C-arm-compatible base that allows unobstructed imaging access from head to toe. Its floating tabletop and motorized height adjustment enable clinicians to achieve accurate patient alignment during live imaging while improving ergonomics and procedural efficiency.

Warranty:

• 3 years parts
• 2 years labor

Features:

• 3 table extensions included
• 53" metal-free imaging area
• 500 lb Patient Weight Capacity

Key Features

• Radiolucent Carbon Fiber Tabletop
  High-strength carbon fiber construction minimizes attenuation and image artifact, delivering superior fluoroscopic image quality essential for urologic procedures.

• Urology-Optimized Table Configuration
  Designed to accommodate urology-specific positioning, accessories, and procedural workflows without compromising imaging access.

• Cantilevered C-Arm Compatible Base
  Open pedestal design eliminates base interference, enabling full C-arm rotation and complete imaging coverage along the table length.

• Floating Tabletop (Two-Way Motion)
  Allows longitudinal and lateral float, enabling precise patient positioning without moving the patient or base.

• Motorized Height Adjustment
  Smooth electric lift system supports quick transitions between patient transfer height and optimal working height for clinicians.

• Enhanced Heavy-Duty Construction
  Built for high-volume clinical use with excellent stability under load and extended procedural support.

• Accessory & Positioning Compatibility
  Supports urology accessories, positioning supports, stirrups (configuration dependent), and safety straps as required for procedural protocols.

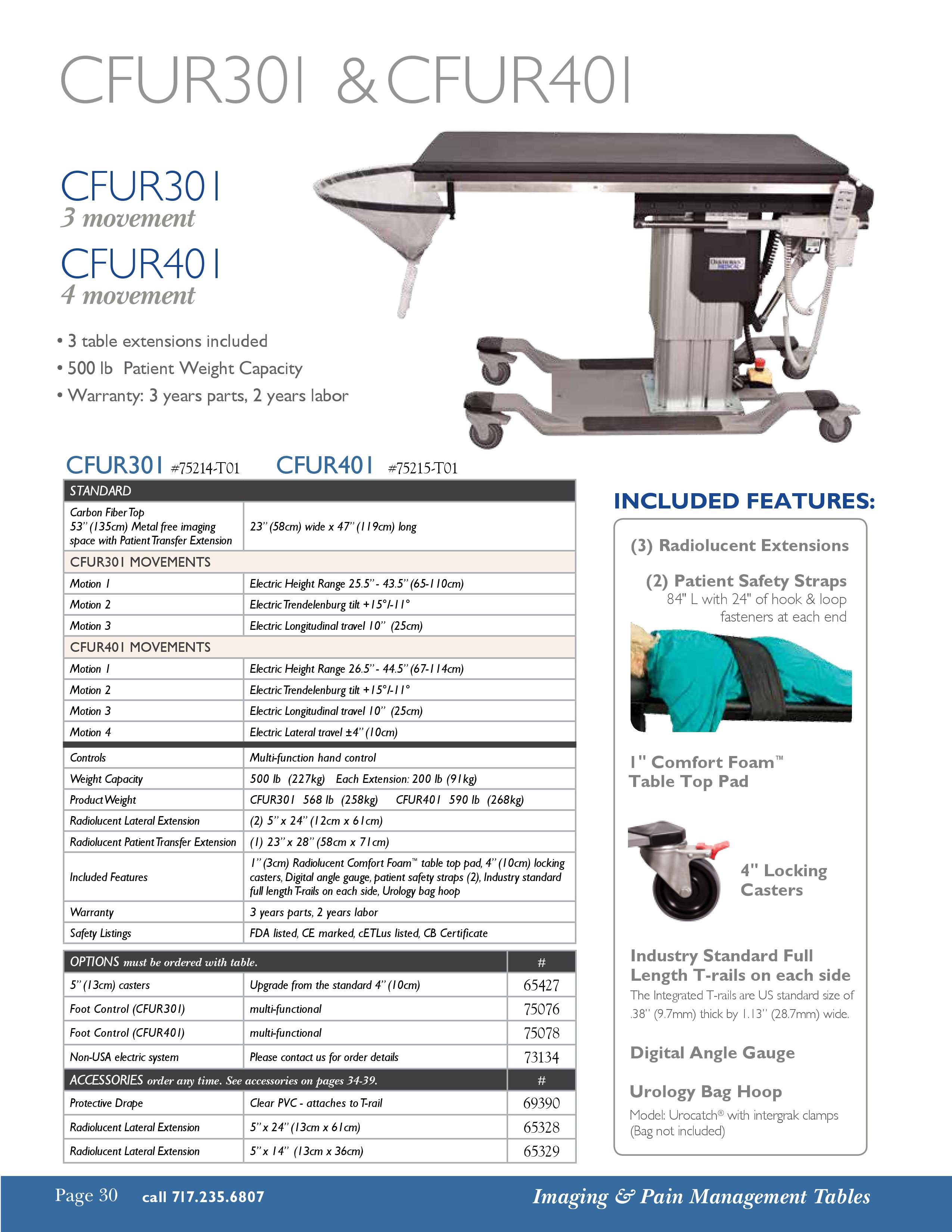

Specifications:

• Patient Weight Capacity: 500 lbs. (227kg.), Included Extensions - 200 lbs. (90kg.)
• Carbon Fiber Top: 23" x 47" (58cm x 119cm)
• Motion 1: height range 26.5" - 46.5" (67cm - 114cm)
• Motion 2: Trendelenburg tilt +15/-11°
• Motion 3: 10" (25cm) longitudinal travel
• Motion 4: lateral travel ±4" (10cm)
• Controls: 1 foot (4 motion), 1 hand (4 motion)
• Table Weight: 590 lbs. (268kg.)
• Certifications: FDA listed, cETL approved, CE marked

Electrical & Control Specifications

• Power Requirements:

  • 120V AC

  • 60 Hz

  • Single-phase

• Control Interface:

  • Hand control and/or foot control (configuration dependent)

• Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

• Height Adjustment: Electric motorized lift

• Tabletop Motion:

  • Longitudinal float

  • Lateral float

• Base Configuration: Cantilevered, C-arm-optimized design

• Patient Transfer: Low-height access for safe and efficient ingress and egress

These capabilities improve imaging accuracy, reduce procedure time, and enhance clinician ergonomics during complex urologic interventions.

Clinical Applications

• Advanced urology procedures

• Cystoscopy and fluoroscopy-guided imaging

• Urologic diagnostics and interventions

• Pain management procedures

• Hospital procedure rooms

• Ambulatory surgery centers (ASCs)

Technical Specifications

• Model: 75215-T01

• Tabletop Material: Carbon fiber (radiolucent)

• Weight Capacity: Up to 500 lbs

• Lift Type: Electric motorized

• Power: 120V / 60Hz / Single-phase

• Imaging Compatibility: C-arm compatible

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 385 lbs

• Width: 28 inches

• Height: 37 inches (maximum height)

• Depth: 84 inches

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your Oakworks urology and imaging table lineup.

Accessories:

• Protective Drape (69390): Clear PVC - attaches to T-rail

Why Choose the Oakworks CFUR401?

The CFUR401 Urology Table delivers an advanced combination of specialty-focused design, imaging performance, and ergonomic positioning. With its floating carbon fiber tabletop, cantilevered C-arm access, and robust motorized lift, it is an excellent choice for facilities seeking high-end urologic capability at a new value.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks CFUR401 Brochure
• Oakworks CFUR401 User Manual
• Oakworks CFUR401 Specifications
