Oakworks CFPMB301 Imaging Table - Rectangular Top

Oakworks CFPMB301 Imaging Table – Rectangular Top (Model 75213-T01)

The Oakworks CFPMB301 Imaging Table – Rectangular Top (Model 75213-T01) is a high-performance, fluoroscopy-ready imaging table engineered for pain management, orthopedic imaging, spine procedures, and interventional diagnostics. Manufactured by Oakworks, the CFPMB301 delivers exceptional radiolucency, precise patient positioning, and long-term clinical durability in a streamlined rectangular tabletop configuration.

This model features a carbon fiber radiolucent rectangular tabletop designed to maximize usable imaging surface area while maintaining excellent image clarity. Its cantilevered C-arm-compatible base allows unobstructed imaging access from head to toe, and the floating tabletop with motorized height adjustment enables clinicians to position patients accurately and efficiently during live imaging.

Warranty:

• 3 years parts
• 2 years labor

Features:

• Large 24 " wide x 80" long carbon fiber top
• Industry's Widest Adjustable Height Range of 26"- 44"
• 750 lb Bariatric Rated

Key Features

• Radiolucent Carbon Fiber Rectangular Tabletop
  High-strength carbon fiber construction minimizes image attenuation and artifact, delivering clear, consistent fluoroscopic imaging across the full tabletop surface.

• Rectangular Top Design
  Provides a uniform imaging surface ideal for a wide range of procedures and patient positioning scenarios.

• Cantilevered C-Arm Compatible Base
  Open pedestal design eliminates base interference, enabling full C-arm rotation and complete imaging access along the table length.

• Floating Tabletop (Two-Way Motion)
  Allows longitudinal and lateral float, enabling fine positioning adjustments without moving the patient or base.

• Motorized Height Adjustment
  Smooth electric lift system supports rapid transitions between patient transfer height and optimal working height.

• Heavy-Duty Clinical Construction
  Designed for high-volume clinical use with excellent stability under load.

• Accessory Rail Compatibility
  Supports positioning accessories such as straps, armboards, and safety supports as required for procedural workflows.

Specifications:

• Patient Weight Capacity: 750 lbs. (340kg.)
• Bariatric Top: 24" x 80" (61cm x 203cm)
• Motion 1: height range 26.5" - 44.5" (67cm - 112cm)
• Motion 2: Trendelenburg tilt +15/-11°
• Motion 3: 4" (10cm) longitudinal travel
• Controls: 1 hand (3 motion) Multi-function hand control
• Table Weight: 475 lbs. (216kg.)
• Certifications: FDA listed, cETL approved, CE marked

Electrical & Control Specifications

• Power Requirements:

  • 120V AC

  • 60 Hz

  • Single-phase

• Control Interface:

  • Hand control and/or foot control (configuration dependent)

• Lift & Motion System:

• Medical-grade electric actuators

• Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

• Height Adjustment: Electric motorized lift

• Tabletop Motion:

  • Longitudinal float

  • Lateral float

• Base Configuration: Cantilevered, C-arm-optimized design

• Patient Transfer: Low-height access for safe ingress and egress

These capabilities improve imaging accuracy, reduce procedure time, and enhance clinician ergonomics.

Clinical Applications

• Pain management procedures

• Fluoroscopy-guided injections

• Orthopedic and spine imaging

• Diagnostic imaging exams

• Ambulatory surgery centers (ASCs)

• Hospital imaging and procedure suites

Technical Specifications

• Model: 75213-T01

• Tabletop Material: Carbon fiber (radiolucent), rectangular design

• Weight Capacity: Up to 500 lbs

• Lift Type: Electric motorized

• Power: 120V / 60Hz / Single-phase

• Imaging Compatibility: C-arm compatible

Backend Entry Fields (for your product form)

Use the following values directly in your backend fields:

• Weight: 360 lbs

• Width: 27 inches

• Height: 37 inches (maximum height)

• Depth: 84 inches

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your Oakworks CFPM imaging tables.

Accessories:

• Fluoro Extender (33975): Polycarbonate
• T-rail Clamp (63336): 6” (15cm) long rail

Why Choose the Oakworks CFPMB301?

The CFPMB301 Imaging Table with Rectangular Top offers a refined combination of maximum imaging surface area, precise positioning capability, and proven Oakworks durability. Its floating carbon fiber tabletop, cantilevered C-arm access, and rectangular design make it an excellent solution for facilities seeking flexibility and performance at a competitive value.

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Literature

• Oakworks CFPMB301 Brochure
• Oakworks CFPMB301 User Manual

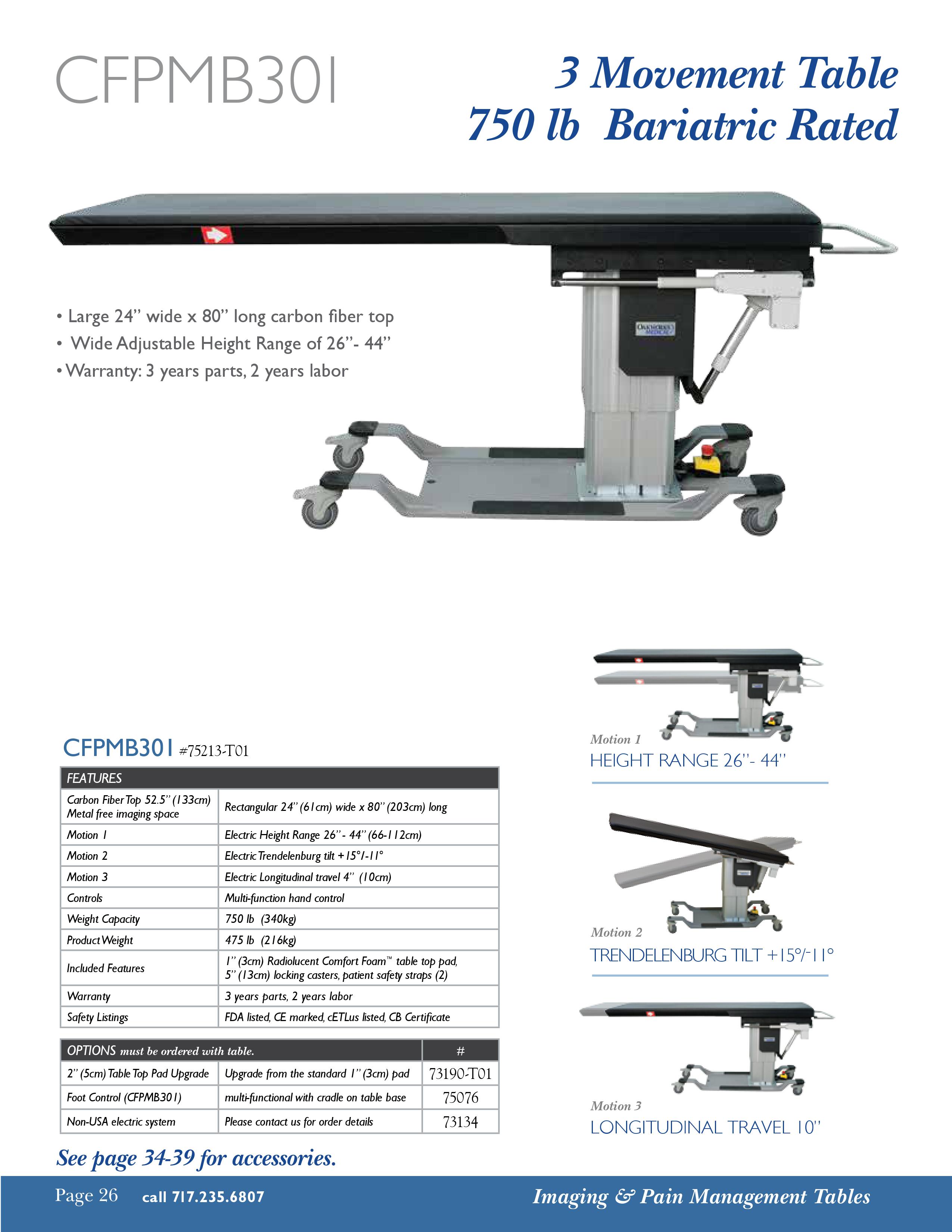

• Oakworks CFPMB301 Specifications
