Oakworks CFPM100 Imaging Table

Oakworks CFPM100 Imaging Table with Integrated Headrest (Model 55569-T01)

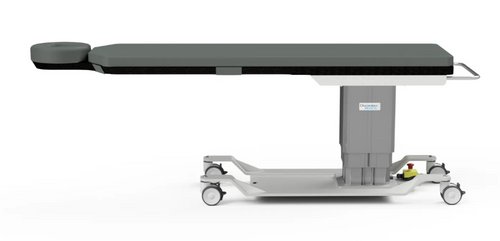

The Oakworks CFPM100 Imaging Table with Integrated Headrest (Model 55569-T01) is a high-quality, radiolucent procedure table engineered for fluoroscopy-guided imaging, pain management, orthopedic diagnostics, and minimally invasive interventional procedures. Designed by Oakworks, the CFPM100 delivers exceptional image clarity, precise patient positioning, and long-term durability in demanding clinical environments.

This model features a carbon fiber radiolucent tabletop with an integrated headrest, providing consistent head and neck support without compromising imaging performance. Its C-arm-friendly cantilevered base design allows unobstructed access from head to toe, while motorized height adjustment supports efficient patient transfer and optimal clinician ergonomics.

Key Features

• Radiolucent Carbon Fiber Tabletop
  Advanced carbon fiber construction minimizes image artifact and attenuation, ensuring high-quality fluoroscopic imaging.

• Integrated Headrest
  Built-in headrest provides stable, comfortable support for the head and neck while maintaining full radiolucency and imaging access.

• Cantilevered C-Arm Compatible Base
  Open pedestal design eliminates base interference, enabling full C-arm rotation and imaging coverage along the length of the table.

• Motorized Height Adjustment
  Smooth electric lift allows rapid transitions between patient transfer height and ideal working height.

• Floating Tabletop Motion
  Enables longitudinal and lateral float, allowing fine positioning adjustments during live imaging without moving the patient.

• Heavy-Duty Clinical Construction
  Designed for long-term use with excellent stability during imaging and interventional procedures.

• Accessory Rail Compatibility
  Supports positioning accessories, straps, and supports as required for procedural workflows.

Warranty:

• 3 years parts
• 2 years labor

Electrical & Control Specifications

• Power Requirements:

  • 120V AC

  • 60 Hz

  • Single-phase

• Control Interface:

  • Hand control and/or foot control (configuration dependent)

• Lift & Motion System:

  • Medical-grade electric actuators

  • Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

• Height Adjustment: Electric motorized lift

• Tabletop Motion:

  • Longitudinal float

  • Lateral float

• Base Configuration: Cantilevered, C-arm-optimized design

• Patient Transfer: Low-height access for safe ingress and egress

These capabilities support precise imaging alignment, reduce procedure time, and minimize clinician fatigue.

Clinical Applications

• Pain management procedures

• Fluoroscopy-guided injections

• Orthopedic and spine imaging

• Diagnostic imaging exams

• Ambulatory surgery centers (ASCs)

• Hospital imaging and procedure suites

Technical Specifications

• Model: 55569-T01

• Tabletop Material: Carbon fiber (radiolucent)

• Headrest: Integrated, radiolucent

• Weight Capacity: Up to 500 lbs

• Lift Type: Electric motorized

• Power: 120V / 60Hz / Single-phase

• Imaging Compatibility: C-arm compatible

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 345 lbs

• Width: 27 inches

• Height: 37 inches (maximum height)

• Depth: 84 inches

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your Oakworks imaging tables.

Why Choose the Oakworks CFPM100?

The CFPM100 Imaging Table with Integrated Headrest offers a premium balance of imaging performance, ergonomic positioning, and long-term reliability. Its radiolucent carbon fiber surface, floating tabletop, and cantilevered C-arm access make it an excellent choice for facilities seeking advanced fluoroscopic capability at a new value price.

Features:

• Our lowest height range table 22"-40"
• Integrated Head Rest
• 500 lb Patient Weight Capacity

Specifications:

• Patient Weight Capacity: 500 lbs. (227kg.)
• Carbon Fiber Top: 22" x 84" (56cm x 214cm)
• Motion 1: height range 22" - 40" (56cm - 102cm)
• Controls: 1 foot (1 motion)
• Table Weight: 343 lbs. (156kg.)
• Certifications: FDA listed, cETL approved, CE marked
• Included Features: 1” (3cm) Radiolucent Comfort Foam™ table top pad, 4” (10cm) locking casters, crescent face rest pad (included with integrated headrest top), patient safety straps (2).

Accessories:

• Fluoro Extender (33975): Polycarbonate
• T-rail Clamp (63336): 6” (15cm) long rail
• Oakworks Single Carbon Fiber Arm Board (81822):
• Spine Positioning System II (81819): 8 piece system

Options:

To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Oakworks CFPM100 Resources

• Oakworks CFPM100 Brochure
• Oakworks CFPM100 User Manual
• Oakworks CFPM100 Specifications
