Oakworks CFLU401 Lithotripsy/Urology Table

Oakworks CFLU401 Lithotripsy / Urology Table (Model 75216-T01)

The Oakworks CFLU401 Lithotripsy / Urology Table 75216-T01 is a specialized, high-performance procedure table engineered for urology, lithotripsy, fluoroscopy-guided imaging, and minimally invasive diagnostic and interventional procedures. Designed by Oakworks, this model delivers exceptional radiolucency, advanced positioning capability, and robust structural stability required in demanding clinical environments.

The CFLU401 features a carbon fiber radiolucent tabletop combined with a C-arm-friendly open base design, allowing unobstructed imaging access and precise patient positioning. Its motorized height adjustment and imaging-optimized geometry make it well suited for hospitals, ambulatory surgery centers, and specialty urology or pain management clinics.

Key Features

• Radiolucent Carbon Fiber Tabletop
  Provides excellent fluoroscopic image clarity with minimal attenuation or artifact, critical for lithotripsy and urology procedures.

• C-Arm Compatible Open Base Design
  Allows improved imaging access from multiple angles while minimizing interference with fluoroscopy equipment.

• Motorized Height Adjustment
  Smooth electric lift enables quick transitions between patient transfer height and optimal working height for clinicians.

• Procedure-Optimized Tabletop Geometry
  Designed to support urology and lithotripsy workflows, offering stable patient positioning during imaging-guided procedures.

• Heavy-Duty Construction
  Engineered for long-term clinical use with excellent stability under load.

• Accessory & Positioning Compatibility
  Supports urology accessories, positioning straps, and patient supports as required by procedural protocols.

Warranty:

• 3 years parts
• 2 years labor

Electrical & Control Specifications

• Power Requirements:

  • 120V AC

  • 60 Hz

  • Single-phase

• Control Interface:

  • Hand control for motorized height adjustment

• Lift System:

  • Medical-grade electric actuators

  • Quiet, smooth operation suitable for imaging environments

Positioning & Motion Capabilities

• Height Adjustment: Electric motorized lift

• Tabletop Motion: Fixed imaging surface (non-floating)

• Base Configuration: C-arm-optimized open base

• Patient Transfer: Designed for safe and efficient ingress and egress

This configuration supports precise imaging alignment while maintaining procedural stability.

Clinical Applications

• Lithotripsy procedures

• Urology diagnostics and interventions

• Fluoroscopy-guided imaging

• Pain management and injection procedures

• Hospital procedure rooms

• Ambulatory surgery centers (ASCs)

Technical Specifications

• Model: 75216-T01

• Tabletop Material: Carbon fiber (radiolucent)

• Weight Capacity: Up to 500 lbs

• Lift Type: Electric motorized

• Control Method: Hand control

• Power: 120V / 60Hz / Single-phase

• Imaging Compatibility: C-arm compatible

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 360 lbs

• Width: 27 inches

• Height: 37 inches (maximum height)

• Depth: 84 inches

These measurements are appropriate for shipping calculations, room planning, and consistent catalog presentation across your imaging and specialty procedure tables.

Why Choose the Oakworks CFLU401?

The Oakworks CFLU401 Lithotripsy / Urology Table offers a specialty-focused, imaging-ready solution that balances precision, durability, and cost efficiency. With its radiolucent carbon fiber surface, reliable motorized lift, and C-arm compatibility, it is an excellent choice for facilities seeking high-quality urology and lithotripsy performance.

Accessories:

• Protective Drape (69389): Clear PVC - attaches to T-rail

Options:

 To add other accessories or options call 833-238-4633 or write us sales@cevimed.com

Oakworks CFLU401 Resources

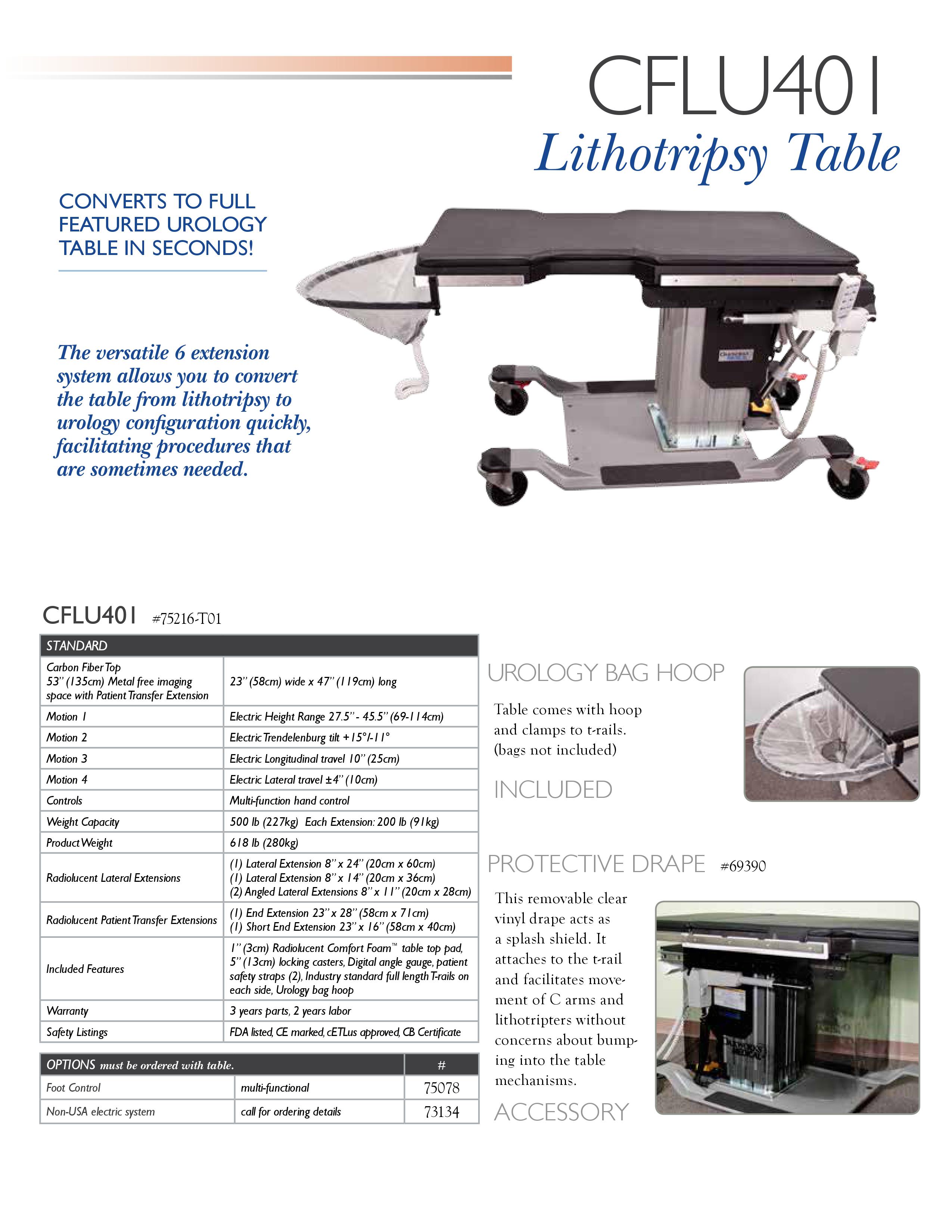

• Oakworks CFLU401 Brochure
• Oakworks CFLU401 User Manual

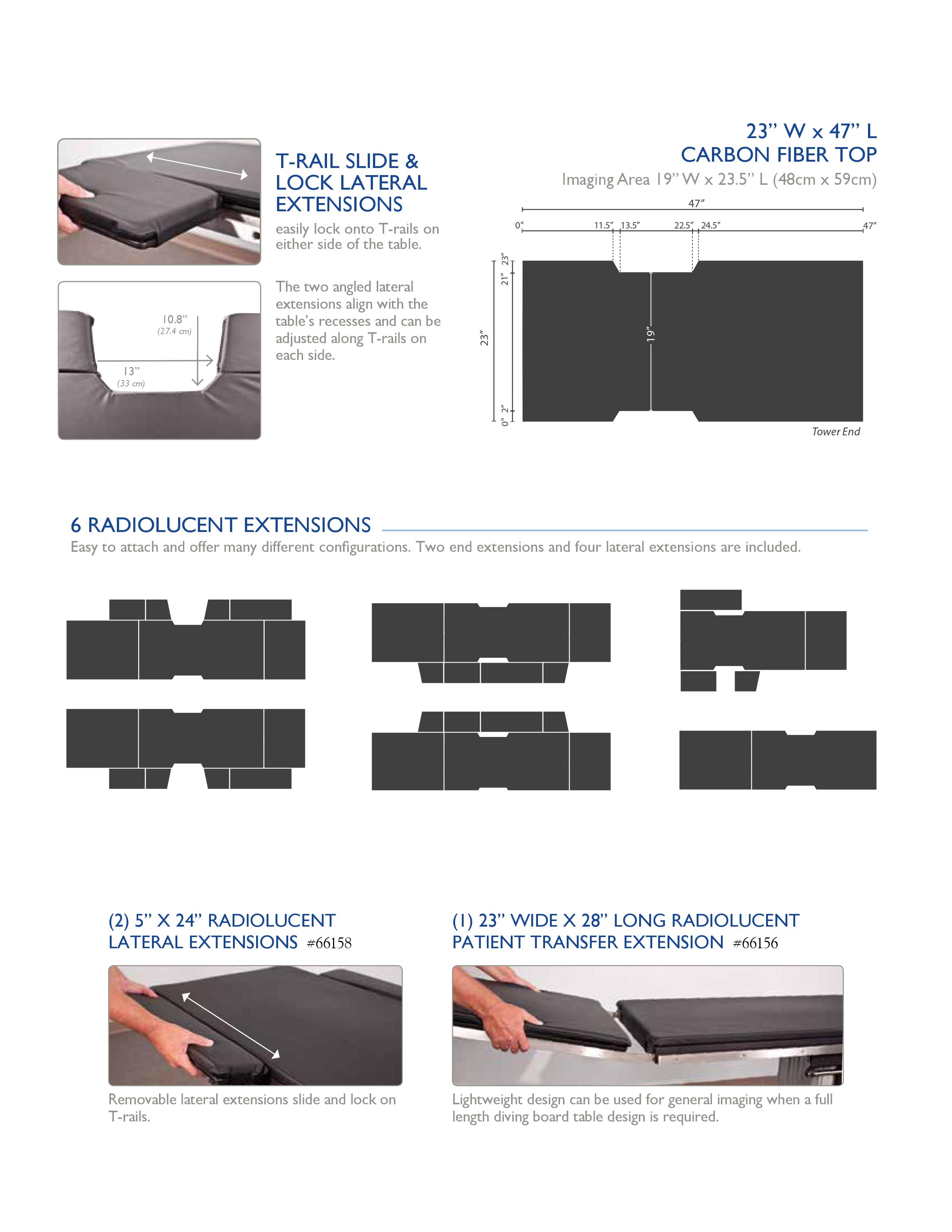

• Oakworks CFLU401 Specifications
