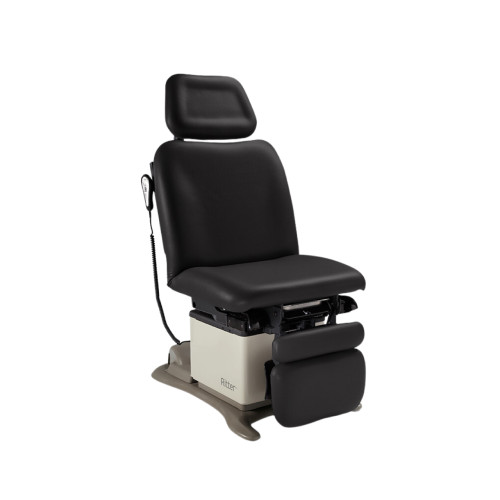

Midmark Ritter 230 Power Procedures Table
There are many challenges facing you and your practice today, so choosing the right equipment is more important than ever. Make the smart choice by choosing the Ritter 230 Power Procedures Table and experience the many benefits of a power table.
If you want the chair without upholstery please Text or Call us : 833-238-4633
Warranty: 1 Year
Note: Armrest are sold separately
Specifications
- Patient Load Rating: 450 lb. (204 kg)
- Height: Minimum 22.5'' (57.2 cm) Maximum 40'' (101.6 cm)
- Seat Tilt Angle Range: 0o to 30o
- Back Support Angle Range: 0o to 85o
- Foot Support Angle Range: 0o to 90o
- Uphsy Width Dimensions: Headrest:18''(45.7 cm) Back support: 27''(68.6 cm) Seat:27''(68.6 cm)Foot support: 18'' (45.7 cm)
- Patient Support Surface Length: Flat position: 72'' (182.9 cm) Flat position with headrest extended: 83'' (210.8 cm)
- Paper Roll Holder Capacity: Holds 18'' x 3.5'' paper roll (45.7 x 8.9 cm)
- Stirrups are standard
- Rotation: Models equipped with rotation option add 3 1/2 inches to minimum and maximum height specifications
- Flat upholstery set, 24'' wide
- Electrical Ratings 115 VAC, 10 Amps, 50/60 Hz (for electrical outlet models) 115/230 VAC, 7/3.5 Amps, 50/60 Hz (for non-electrical outlet models) 115/230 VAC, 7.5/3.8 Amps, 50/60 Hz (for rotation models)
- Safety Standards UL 60601-1 and CAN/CSA C22.2 No. 601.1 - M90
Configuration:
| Product | Code |
| 230 Power Table Base ONLY | 230-001 |
| 230 Power Table Base W/Recept-Base ONLY | 230-002 |
| 230 Power Table Base W/Rotation-Base ONLY | 230-003 |
| Standard Upholstery | N/A |
| or UltraFree Upholstery | N/A |
| Table without upholstery is available for purchase Call (833) 238-4633 for pricing. | N/A |
Accessories
| Product | Code |
| Ritter 253 LED Exam Light | 253-005 |
| Foot control - linear style | 9A371003 |
| Midmark 24" wide foot support | 9A337001 |
| Ritter 230 Adjustable Chair Arm System | 9A328002 |
Midmark Ritter 230 Resources
1 Year
