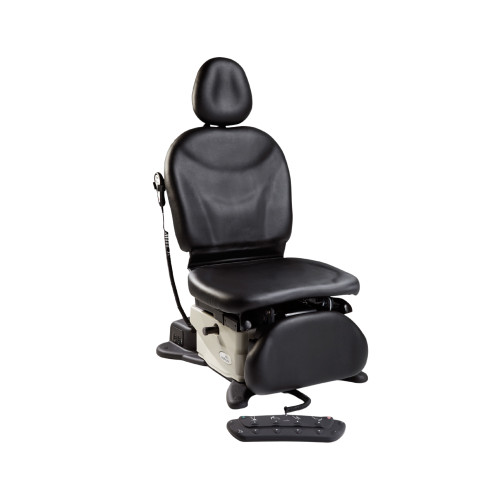

Midmark Ritter 630 HumanForm Barrier Free Power Procedure Table
The Midmark 630 Barrier-Free Table offers a combination of luxury and practicality, for both the patient and the physician. This table does the work for you, preventing the physician and staff from injury and strain. Features such as power height, back, foot and tilt adjustments, a remarkably low height of 18”, extraordinary patient comfort and several other efficiency features considerably improve the atmosphere of your practice. The Midmark 630 table is the right choice for any exam room.
- Save time and your back with the Midmark 630—the benchmark in patient and provider-centered performance.
- The Midmark 630 is designed to complement the human body with more natural movement and enhanced positioning capabilities.
- Barrier-Free Design: Best-in-class, 18-inch low seat height and 650-pound weight capacity.
Note: You can also buy the base only, top upholstery and armrests sold separately
Warranty: 1 Year
Specifications:
- Patient Weight Capacity: 650 lb (295 kg).
- Height:Standard Base:Minimum: 18" (45.7 cm).
- Maximum: 40" (101.6 cm).
- Rotational Base:Minimum: 21.5" (54.6 cm).
- Maximum: 43.5" (110.5 cm).
- Seat Tilt Angle Range: 0 to 30 degrees.
- Back Support Angle Range: 0 to 80 degrees.
- Foot Support Angle Range: 0 to 90 degrees.
- Patient Support Surface Length: 72 to 76" (182.9 to 193 cm) in flat position.
- Paper Roll Holder: Holds 18" x 3.5" (45.7 cm x 8.9 cm) paper roll.
- Weight (with upholstery):
- Standard Base: 475 lb (215 kg).
- Rotational Base: 550 lb (249 kg).
- Electrical (for standard models w/ receptacle)
- 115/230 VAC, 12/6 A, 50/60 Hz
- Electrical (for rotation models)
- 115/230 VAC, 9/4.5, 50/60 Hz
- Electrical outlet rating
- 115 VAC, 3 A.
Available Models:
| Code | Product |
| 630-010 | 630 Procedures Table Non-Programable W/ Receptacle,W/Top |
| 630-011 | 630 Procedures Table Non-Programable Wireless ,W/ Receptacle,W/Top |
| 630-012 | 630 Procedures Table Non-Programable W/Rotation, W/O Top |
| 630-013 | 630 Procedures Table Non-Programable Wireless , W/Rotation, W/O Top |
| 630-020 | 630 Procedures Table Programable W/ Receptacle,W/Top |
| 630-021 | 630 Procedures Table Programable Wireless, W/Receptacle, W/O TOP |
| 630-022 | 630 Procedures Table Programable, W/Rotation, W/O Top |
| 630-023 | 630 Procedures Table Programable Wireless , W/Rotation, W/O Top |
| N/A | Standard Upholstery |
| N/A | or UltraFree Upholstery |
| N/A | Table without upholstery is available for purchase Call (833) 238-4633 for pricing. |
| Code | Product |
| 9A550001 | 630 Chair Arm Set |
| 9A557001 | Accessory Rail |
| 9A567001 | Seat Accessory Rail |
| 9A555001 | Gynecology Debris Tray |
| 9A82001 | Hand Surgery Armboard |
| 9A81001 | Articulating Armboard |
| 9A179002 | Fixed Armboard |
| 9A554001 | Locking Caster 630 |
| 9A78001 | Vision Block Screen |
| 9A214001 | Security Strap |
| 9A157003 | Security Side Panel |
| 9A496001 | Rectangular Headrest |
| 9A512001 | Midmark 630 U-Shaped Headrest |
| 9A77001 | Midmark IV Pole |
| 9A411001 | Midmark Articulating Knee Crutch |
| 9A267003 | Double Arm Instrument Tray |
Literature
- Midmark 630 HUMANFORM Power Procedures Table Brochure
- Midmark 630 User Guide
- Midmark 630 Installation Guide
- Midmark 630 Upholstery Installation Guide
- Midmark 630 Cevi Med Information sheet
- Midmark 630 Service and Parts Manual
- Hand Control Holster Kit Replacement
1 Year
