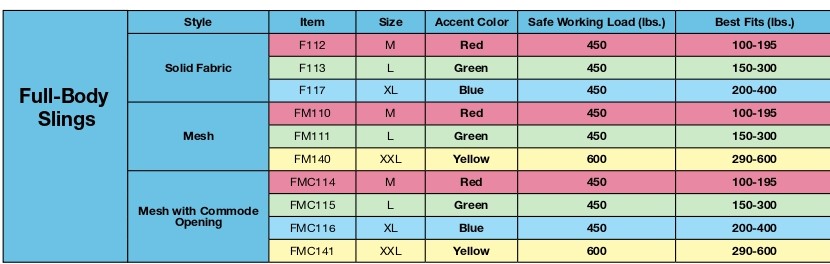

Graham Field Full Body Slings
Full Body slings are the easiest sling to use while transferring a resident from a supine position (laying on ones’ back). It can be used for transfers from a bed to a chair, wheelchair, or toilet, or from the floor to a bed. This sling style offers total head, neck, and thigh support. Full body slings should be used for residents who are totally or partially dependent, non-weight bearing, bariatric, or for those who have limitedhead control.
These are available in a solidfabric, mesh, or mesh with a commode opening. Mesh slings should be used for bathing. These slings are often left under the resident between lifts. Solid fabric slings should not be left under the resident for extended periods of time, as the fabric can retain body heat. LUMEX Full Body slings have four connection points and can be used with 2-, 4-, or 6-point spreader bars.
Features:
- Quick drying mesh fabric
- Full head and neck support
- Ideal to use with 4-Point spreader
- 6 month manufacturer’s limited warranty
- Up to 600 Pound Weight Capacity
- Latex free
Also Available Lifts :
| Model | Floor Clearance | Spreader Bar Minimum Height from Sling Attachment | Spreader Bar Maximum Height from Sling Attachment | Overall Legth | Minimum Base Width(outside) | Maximum Base Width(outside) | Safe Working Load(Evenly Distributed) | Product Weight |
| LF500 | 4.3" | 19.3" | 74.8" | 49.2" | 25.6" | 39.4" | 500LB | 116.8LB |
| LF1050 | 4.9" | 27.5" | 68.1" | 40.2" | 26.0" | 37.8" | 400LB | 114.5LB |
| LF1090 | 4.9" | 27.2" | 70.9" | 50.0" | 26.0" | 43.0" | 600LB | 137.0LB |
| LF2020 | 4.9" | 36.4" | 70.8" | 40.4" | 25.5" | 37.8" | 400LB | 118.0LB |
| LF2090 | 4.9" | 36.4" | 70.8" | 40.4" | 25.5" | 37.8" | 600LB | 134.0LB |
| Model | Safe working load | User Height | Maximum Width | Maximum Height | Overall Legth | Unit Weight | Front Base Height |
| LF1600 | 400LB | Between approximately 5´1" and 6´6" | 25" | 42.5" | 33.5" | 61.0Lb | 4.7" |
Also avaliable Slings:
| Product | Features |
| Full-Body Slings | Easiest sling to use while transferring a resident from a supine position |
| Easiest sling to use while transferring a resident from a seated position ,Also called divided leg slings | |
| Facilitate the toileting procedure by allowing the lowering of clothing | |
| Designed to facilitate transfers using sit-to-stand lifts. |
