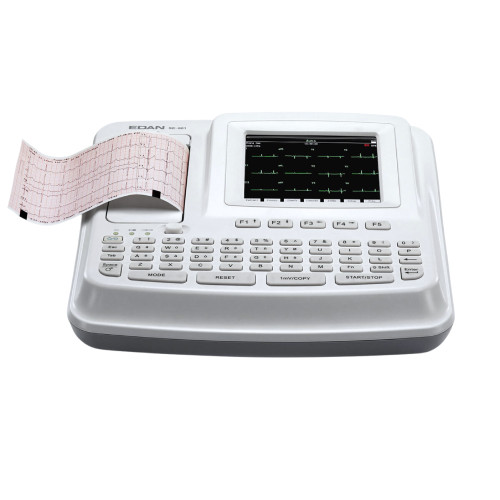

Edan SE-601 6-Channel ECG

The SE-601 series is a cost-effective solution for hospital wards, routine checks, home visit, and emergency cases. It is intended to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes. The cardiogram recorded by the electrocardiograph can help users to analyze and diagnose heart disease.

Warranty: 2 Years

Includes:

• ECG Cable (4 mm, banana connector, AHA)
• (100) Bio ProTech Resting Tab Electrodes.
• (10) Unomedical 10-Lead Universal Clips .
• Recording Paper (Z-fold, 110 mm x 140 mm x 144 p)
• Power Cord (USA Hospital Grade)
• Rechargeable Lithium Battery (2200 mAH)
• (2) Fuses (T400 mA, USA standard)
• User Manual.
• Quick Reference Card.

Options:

Features:

• FDA Approved.
• Heart rate variability (HRV) and R to R Trending analysis.
• Auto analyzing and Diagnostic software (Interpretation).
• Portable, lightweight design.
• Easy data input and operation.
• Alphanumeric keyboard and one-touch operation.
• Built-in rechargeable battery, AC/DC power supply.
• Pacemaker detection which meet the requirements of ANSI/AAMI EC11.
• Automatic analysis and diagnostic software for adults and pediatrics.
• Two-step exercise test with periodic recording.
• Built-in internal thermal printer and external printer.
• Support external archiving: USB flash disk, card reader.
• Data transmission to PC via Ethernet or serial port.
• 2 year extended warranty available for $299.

Specifications:

• Input Circuit: Defibrillator protection.
• Lead: Standard 12 leads.
• Acquisition Mode: 12 channel simultaneous acquisition (10 - 24 s adjustable).
• A/D Converter: 24 bits.
• Sampling rate: 1000 Hz/channel, 10,000 HZ for pacemaker detection.
• Noise Level: ± 5 mVp-p.
• Time Constant: > 3.2 s.
• Frequency Response: 0.05 to 150 Hz.
• Calibration Voltage: 1 mV ± 2%.
• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV).
• Input Impedance: > 50 MΩ.
• Input Circuit Current: Less than 10 µA.
• Noise Level: Less than 12.5 µVp-p.
• Patient Leakage Current: Less than 10 µVp-p (220 to 240 V).
• Patient Auxiliary Current: Less than 0.1 µA (DC).

Filter:

• EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF.
• Anti-Baseline Drift: 0.05 / 0.15 / 0.25 / 0.5 Hz.
• Low-Pass Filter: 75 Hz / 100 Hz / 150 Hz.
• AC Filter: 50 Hz / 60 Hz.
• CMRR: > 115 dB.
• Recording Mode: Auto/Manual/Rhythm.
• Rhythm Lead: Single channel or three channels (selectable).

Power Supply:

• AC: 100 - 240 V, 50/60 Hz.
• 12 V Vehicle-Carried Inverter.
• Li-on battery.
• Battery: Built-in rechargeable Li-on battery, 2200 mAh, 14.8 V for six hours general use or 280 copies ECGs continuous printing.
• Recorder: Thermal printer.
• Record Paper: 110 mm x 140 mm x 144 p (Z-fold).
• Paper Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (± 3%).
• Weight: 6.6 lbs (3 kg) including battery and paper.
• Dimensions: 322 mm x 310 mm x 101 mm.

External Input/Output:

• Input: > 100 kΩ; Sensitivity 10 mm/V ± 5%.
• Output: Less than 100 Ω; Sensitivity 1 V/mV ± 5%.
• Communication Interface: Ethernet, RS232.

Literature

• Edan SE-601 6-Channel ECG Manual
