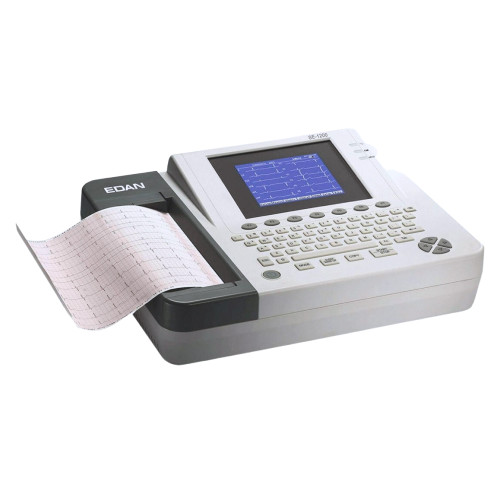

Edan SE-1200 Express Basic 12-Channel ECG

Edan SE-1200 Series ECG Machine provides an advanced performance and high reliability. This 12-channel electrocardiograph is a low weight, portable unit with a built-in high resolution thermal printer suitable for the use on adult and pediatric patients. It will fit both clinic and hospital settings, providing a number of flexible transportation, mounting and storage solutions

The SE-1200 Express Basic features excellent cost performance with its built-in high-resolution thermal printer. You can record 12 ECG traces on A4 size and US Letter-size paper.

Warranty: 3 Years.

includes:

• Main Unit
• 1 ECG Cable (4mm, banana connector, AHA)
• 100 Bio ProTech Resting Tab Electrodes
• 10 Unomedical 10-Lead Universal Clips
• 1 Recording Paper (Z-fold, 210mm*295mm*100P)
• 1 Power Cord (USA standard)
• 1 Rechargeable Lithium Battery (2200mAH)
• 1 Fixed Bar for Battery (Necessary accessory for 2200mAH battery)
• 2 Fuse (1A)
• Manual
• Quick Reference Card
• User Guide for Interpretation
• Warranty

Features:

• User-Friendly Design:
• 5.7" LCD screen for optimal viewing.
• Alphanumeric keyboard.

Streamlined Workflow:

• One touch operation with age and gender shortcuts.
• Support barcode scanner to simplify workflow.

Accurate Clinical Performances:

• Enhanced weak signal detection with the most advanced A/D converter technology.
• Anti-noise technology with comprehensive filters and the high CMRR over 115 dB.
• 120s real-time ECG waveforms freezing and review to assist your diagnosis.
• Automatic measurements and interpretation tested by CSE/AHA/MIT database.
• Extended printing once arrhythmia is detected to further rhythm analysis.
• Integrated advanced ECG analysis (Vector ECG).

Flexible Printing Solutions:

• Built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper.
• External USB printer support.

Data Management:

• 200 ECGs internal memory which can be enlarged by USB flash disk.
• Smart ECG Viewer software for data management on PC (optional).

Extensive Communications:

• DATA transmitting to PC via LAN/WIFI.

Standard ECG Formats: PDF, SCP, FDA-XML, and DICOM data export.

• Bi-directional data communication with DMS.

Specifications:

• Input Circuit: Defibrillation protection.
• Standard 12 leads.
• A/D Resolution: 24 bits.
• Time Constant: ≥ to 3.2 s.
• Frequency Response: 0.05 ~ 150 Hz (-3 dB).
• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV).
• Input Impedance: ≥ to 50 MΩ (10 Hz).
• Input Circuit Current: ≤ 0.01 µA.
• Input Voltage Range: < ± 5 mVpp.
• Calibration Voltage: 1 mV ± 2%.
• DC Offset Voltage: ± 600 mV.
• Noise: ≤ 12.5 µVp-p.

Filter:

• AC Filter: On/Off.
• DFT Filter: 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz.
• EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF.
• LOWPASS Filter: 150 Hz / 100 Hz / 75 Hz.
• CMRR: ≥ 115 dB.
• Working Mode: Auto/Manual/Rhythm/R-R/Off.
• Rhythm: Single channel or 3 channels (selectable).
• Power Supply: 110 - 240 V, 50/60 Hz (AC).
• Battery: Built-in rechargeable Li-ion battery (for 300 copies ECG printing).
• Record Paper: Roll and Z-fold.
• Record Width: 216 mm, 210 mm.
• Record Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (± 3%).
• Dimensions: 16.5" x 13" x 4.1" (420 mm x 300 mm x 105 mm).
• Weight: 11 lbs (5 kg).
• Display: 800 x 600 dots multicolor LCD screen.
• Communication Interface: Ethernet/RS232/USB.
