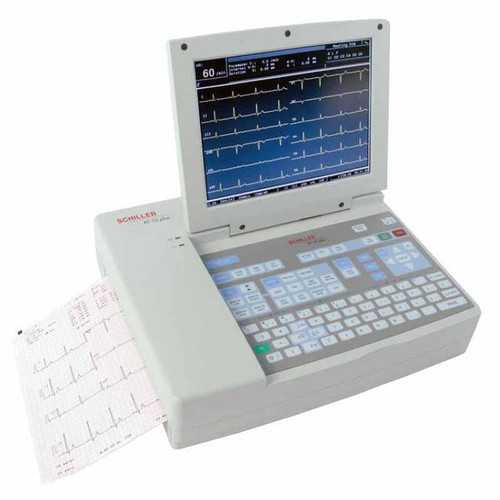

Schiller Americas; Cardiovit AT-10 Plus Stress System with Treadmill

The Schiller Cardiovit AT-10 Plus Stress System with Treadmill combines resting ECG, exercise ECG, pacemaker measurement, HRV analysis, signal averaged ECG analysis, thrombolysis software, and spirometry in a single system.



Includes:

      • 10-Lead Patient Cable.
      • 10 Snap Clip Electrode Adapters.
      • 500 Disposable Electrodes.
      • 1 Pack of Paper.
      • Power Cable.
      • Operating Manual.
      • Interpretation Guide.



Features:

      • Built-in ECG Waveform LCD display.
      • Built-in 8.5" x 11" printer.
      • Built-in LAN, RS-232- and VGA Output ports.
      • Internal memory for up to 350 ECG recordings.
      • Complete integration with the SEMA-200 cardiology data management system.
      • Spirometry.
      • Easy to read, high resolution 10.4" TFT color screen offers a clear presentation of all 12 ECG traces from every work angle.
      • Full-featured, high-performance 12-lead resting ECG machine with interpretation and an extensive list of options to fit the needs of demanding medical and research organizations.
      • Direct Function keys and on-screen menus allow for quick, simple, and reliable operation.
      • Pre-programmed settings are activated at the touch of a button.
      • The optional WLAN function enables bi-directional communication with the SEMA Cardiology Information System via the optional Schiller Communication Module. You can quickly and easily view, edit, and archive patient data, reducing the risk of data entry errors.
      • Complete integration with the SEMA-200 cardiology data management system.



Specifications:

      • Dimensions: 13.7" x 11.3" x 3.4" (348 mm x 288 mm x 87 mm).
      • Weight (without treadmill): 9.3 lb (4.2 kg).
      • Power Supply:Mains Voltage: 220 - 240 V (nominal), 50 / 60 Hz; 100 - 115 V (nominal), 50 / 60 Hz.
      • Power Consumption: 14 VA - 28 VA (Max).
      • Battery: Operation with built-in rechargeable battery.
      • Battery: Nickel Cadmium 9.6 V.Capacity: 2 hours normal use, 3 hours Standby.
      • Battery Life: Under normal operating conditions, 4 years.
      • Recharging Time: 90%: approx. 7 hours, 100%: approx. 15 hours.
      • Printer: High-resolution thermal printing, 8 dots/mm (amplitude axis), 40 dots/mm (time axis), @ 25 mm/s.
      • Memory: Storage for up to 40 ECG recordings. Further memory available with the extended memory option.
      • Environmental Conditions:Operating Temperature: 10° - 40°C.
      • Storage Temperature: -10° - 50°C.
      • Relative Humidity: 25 - 95% non-condensing.
      • Pressure During Operation: 700 - 1060 hPa.



Options

Product # Dimensions Weight Pcs/Pkg
9.173000E-110V 13.7" x 11.3" x 3.4" 148.8 oz. 1/each
9.173000E-220V 13.7" x 11.3" x 3.4" 148.8 oz. 1/each
