Schiller Cardiovit AT-10 Plus ECG Machine
Cevi Med#: CM8698
- Condition:
- New
- Availability:
- 5-7 Business Days
- Warranty Information:
- 3 Years
- Shipping:
- $50.00

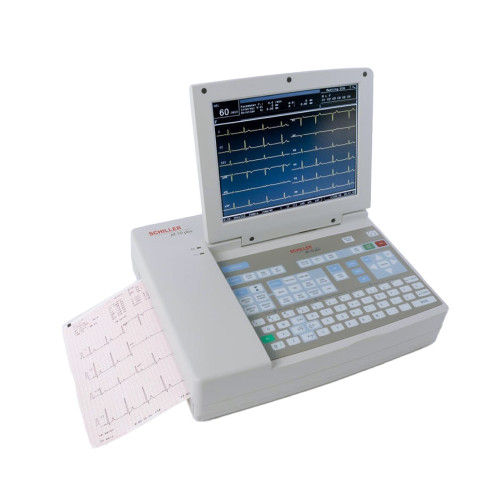

Schiller Americas; Cardiovit AT-10 Plus ECG Machine
The Schiller Cardiovit AT-10 Plus ECG Machine combines the basics of electrocardiography with the benefits of the IT world. It does not only provide all functions of a high-quality 12-channel electrocardiograph, but also meets the requirements of an integrated diagnostic workstation.
Warranty: 3 Years.
- 6- or 12-channel online rhythm printout (manual mode).
- Resting rhythm recording (12-lead full-disclosure ECG recording).
- Posterior leads (V7-V9), right precordial leads (V3r-V6r) and standard leads with V4r.
- ECG print preview.
- Pacemaker detection.
- Rechargeable battery for mobile use.
- ECG measurement software with accurate measurements of recorded cardiac signals.
- Data transfer to PC for storage of resting ECG, resting rhythm, exercise ECG, and spirometry recordings via Ethernet.
- Memory for up to 350 resting ECGs.
- Bi-directional network communication provides remote access to the patient demographics.
- DICOM and HL7 ECG waveform export of resting ECGs1.
- FAA export (Federal Aviation Administration).
- PDF export2.
Options:
- Automatic ECG measurement and computer-aided ECG interpretation for paediatric and adult ECGs.
- 16-lead high-end ECG Machine for resting ECGs3.
- Thrombolysis recommendation software C.C.A.A. (Culprit Coronary Artery Algorithm).
- Pacemaker measurements.
- SAECG : analysis software to detect ventricular late potentials.
- Heart rate variability.
- Spirometry.
- Exercise ECG software.
- WLAN and internal modem.
- Barcode reader.
- Worklist.
- SEMA-200 and SEMA3 PC software to save, validate, and archive ECG and spirometry data on PC.
Configurations:
9.173000C - With Interpretation and Memory: AT-10 Plus ECG, w/Interp and Memory (350 Resting ECG's), Laptop design, built-in 8.5" x 11" printer, built-in LAN, RS-232, and VGA Output ports. Upgradeable to PFT, Stress, Pacemaker Measurement, HRV, & SAECG:
- 10 Lead Patient Cable.
- 10 Snap Clip Electrode Adapters.
- 500 Disposable Electrodes.
- One (1) pack of paper.
- Power Cable.
- Operating Manual.
- Interpretation Guide.
9.173000CS - With Interpretation, PFT, and Memory: AT-10 Plus ECG, w/Interp, PFT, and Memory (350 Resting ECG's), Laptop design, built-in 8.5" x 11" printer, built-in LAN and VGA Output ports. Upgradeable to Stress, Pacemaker, HRV, & SAECG. Includes SP-250 Sensor and Calibration Syringe (2.100037):
- 10 Lead Patient Cable.
- 10 Snap Clip Electrode Adapters.
- 500 Disposable Electrodes.
- One (1) pack of paper.
- Power Cable.
- Operating Manual & Interpretation Guide.
- SP-250 Flow Sensor.
- Pack of 10 Disposable Flow Tubes / two Nose Clips.
9.173000WLAN - With Wireless LAN/VGA Output : AT-10 Plus Wireless ECG, w/Interp and Memory (350 Resting ECG's), Laptop design, built-in 8.5" x 11" printer, Wired and Wireless LAN and VGA Output ports. Does not include Modem. Upgradeable to PFT, Stress, Pacemaker, HRV, & SAECG:
- 10 Lead Patient Cable.
- 10 Snap Clip Electrode Adapters.
- 500 Disposable Electrodes.
- One (1) pack of paper.
- Power Cable.
- Operating Manual.
- Interpretation Guide.
Options
Product # | Dimensions | Weight | Pcs/Pkg |
9.173000C | 20 x 16" x 16" | 336 oz. | 1/each |
9.173000CS | 20" x 16" x 16" | 368 oz. | 1/each |
9.173000WLAN | 20" x 16" x 16" | 336 oz. | 1/each |
