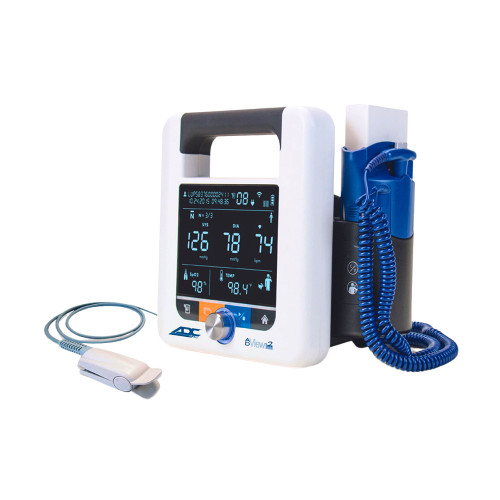

ADC ADView 2 Modular Diagnostic Station
- Includes a rechargeable lithium-ion battery, U.S. power cord, 10-foot length of tubing, Adult Plus and Large Adult Plus cuffs, Mini-USB to USB cable, a Quick Start Guide, and a Quick Reference Guide
- The ADView 2 is still the only truly modular diagnostic station that grows with your needs
- Start with blood pressure and choose temperature or pulse oximetry options at the time of purchase; we’ll ship your ADView 2 fully configured and ready to go
- The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button
Warranty: 3 Years
Configurations:
- ADView 2 Blood Pressure Base Unit (9005BP)
- ADView 2 Blood Pressure Base Unit with Temperature Module (9005BPTO)
- ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module (9005BPS)
- ADView 2 Blood Pressure Base Unit with ChipOx Nellcor Compatible SpO2 Module and Temperature Module (9005BPSTO)
- ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module (9005BPSM)
- ADView 2 Blood Pressure Base Unit with Masimo SET SpO2 Module and Temperature Module (9005BPSMTO)
Specifications
-
Power: Internal power supply.
-
Input: 100-240 VAC @ 1.5A max, 50-60 Hz.
-
Output: +9VDC @ 5A IEC 320 type input connector.
Battery:
-
Type: 7.2v, 6600mAh Internal Lithium-Ion battery.
-
Run Time (full charge): ~20 hrs* / 200 BP cycles.
-
Charge Time: ~6 hrs @ 23deg Celsius +/- 2deg.
Temperature Module Specifications:
-
Temperature Accuracy:
- Quick Mode (Oral): +/- 0.3 degrees C.
- Std. Mode (Aux/Recta): +/- 0.1 degrees C.
- Direct Mode: +/- 0.1 degrees C.
-
Response Time:Resolution: 0.1 degrees C.
- Quick Mode: 4 sec.
- Axillary/Rectal: 10-15 sec.
- Direct Mode: 60 sec.
SpO2 Module Specifications:
-
Saturation Normal (no motion): 70-100%Arms +/- 2%.
-
Saturation Motion: N/A.
-
Low Perfusion: N/A.
-
Pulse Heart Rate: 20-300 BPM: +/-3 BPM.
-
Pulse Heart Rate w/motion: 20-300 BPM: +/-3 BPM.
Product # | Condition | Pcs/Pkg |
9005BP | Factory New | 1/each |
9005BPTO | Factory New | 1/each |
9005BPS | Factory New | 1/each |
9005BPSTO | Factory New | 1/each |
9005BPSM | Factory New | 1/each |
9005BPSMTO | Factory New | 1/each |
Literature
- ADC 2018-2019 Product Catalog
- ADC ADView 2 Modular Diagnostic Station User Manual
- ADC ADView 2 Modular Diagnostic Station Product Brochure
- ADC ADView 2 Modular Diagnostic Station Quick Reference Guide
