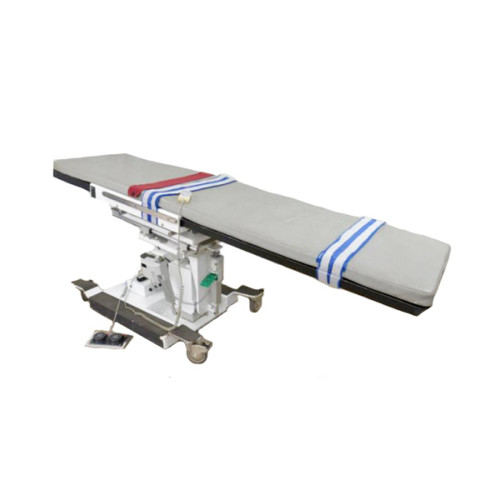

Morgan MEDesign FLTLT-FW C-Arm Table - Refurbished

Morgan MEDesign FLTLT-FW C-Arm Table — Refurbished

The Morgan MEDesign FLTLT-FW C-Arm Table (Refurbished) is an advanced imaging table engineered for fluoroscopy-guided procedures, pain management, vascular access, and interventional diagnostics. Designed to support demanding clinical workflows, the FLTLT-FW combines a fully radiolucent floating tabletop, motorized height adjustment, and a C-arm-optimized base design to deliver exceptional imaging access, precision positioning, and patient safety.

Manufactured by Morgan MEDesign, this model is purpose-built for facilities that require multi-directional tabletop motion without compromising stability. The FLTLT-FW allows clinicians to fine-tune patient positioning during live imaging, reducing procedure time and minimizing the need for patient repositioning.

Key Features

• Radiolucent Imaging Tabletop
  High-quality radiolucent surface minimizes image artifact and attenuation, delivering clear fluoroscopic visualization during procedures.

• Floating Tabletop (Four-Way Motion)
  Tabletop floats longitudinally and laterally, enabling precise patient alignment under the C-arm without moving the base or patient.

• C-Arm Compatible Base Design
  Open, imaging-friendly base allows improved C-arm access from multiple angles along the length of the table.

• Motorized Height Adjustment
  Electric lift system provides smooth, controlled height changes to support patient transfer and ergonomic working positions.

• Wide Tabletop Configuration (FW)
  “FW” (Full Width) tabletop offers increased patient support and comfort while maintaining full imaging functionality.

• Heavy-Duty Construction
  Designed for long-term clinical use with excellent stability during imaging and interventional procedures.

• Accessory Rail Compatibility
  Supports standard patient positioning accessories such as straps, arm supports, and safety accessories.

Electrical & Control Specifications

• Power Requirements:

  • 120V AC

  • 60 Hz

  • Single-phase

• Control Interface:

  • Hand control for height adjustment

  • Manual release for tabletop float positioning

• Lift System:

  • Medical-grade electric actuators

  • Quiet, vibration-free operation suitable for imaging environments

Positioning & Motion Capabilities

• Height Adjustment: Electric motorized lift

• Tabletop Motion:

  • Longitudinal float

  • Lateral float

• Base Configuration: Fixed, C-arm-optimized design

• Patient Transfer: Optimized low-height access for safe ingress and egress

These capabilities allow clinicians to maintain optimal imaging angles while reducing physical strain and procedural delays.

Clinical Applications

• Pain management and injection procedures

• Fluoroscopy-guided diagnostics

• Vascular and interventional imaging

• Orthopedic and spine procedures

• Ambulatory surgery centers (ASCs)

• Imaging and procedure suites

Refurbishment Process & Quality Assurance

This refurbished Morgan MEDesign FLTLT-FW has been professionally inspected, tested, and restored to ensure full clinical readiness. Electrical systems, lift mechanisms, tabletop float performance, and structural integrity are verified for safety and reliability. Cosmetic components are refinished as needed to meet professional medical facility standards.

Technical Specifications

• Tabletop Type: Radiolucent floating imaging surface (Full Width)

• Weight Capacity: Up to 500 lbs

• Lift Type: Electric motorized

• Control Method: Hand control + manual float release

• Power: 120V / 60Hz / Single-phase

• Imaging Compatibility: C-arm compatible

Backend Entry Fields

Use the following values directly in your backend fields:

• Weight: 385 lbs

• Width: 30 inches

• Height: 38 inches (maximum height)

• Depth: 84 inches

These measurements are appropriate for shipping estimates, room planning, and consistent catalog presentation across your imaging table listings.

Why Choose the Morgan MEDesign FLTLT-FW?

The FLTLT-FW C-Arm Table offers an ideal balance of advanced positioning capability, imaging performance, and cost efficiency. With its floating tabletop, wide patient surface, and reliable motorized lift, it is an excellent choice for facilities seeking greater procedural control and workflow efficiency without the expense of new equipment.
