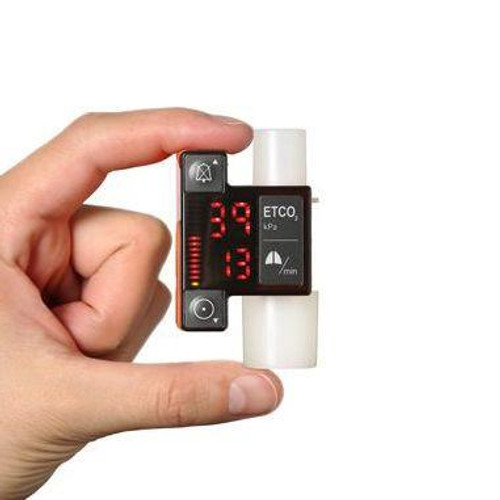

Masimo EMMA Mainstream Capnometer

Unit designed for short-term end-tidal carbon dioxide and respiration rate monitoring patients.

Features

• design allows it to be used at multiple points of care
• Small, lightweight design fits in the palm of your hand for mobility and convenience.
• Designed to fit easily onto a breathing circuit.
• Audible - visual alarm system for No Breath Detected, No Adapter, Check Adapter, and adjustable high and low EtCO2 alarm.
• Bar Graph: Highly visible bar graph provides continuous feedback on end-tidal carbon dioxide concentration, breathing activity, or alarm status.
• Warm-up time to full accuracy is 15 seconds.
• Respiration Rate Displayed after two breaths and updated every breath.
• Easy to maintain - no routine calibration required.

Ranges:

• CO2: 0 - 99 mmHg.
• Respiration Rate: 3 - 150 bpm.

Accuracy:

• CO2: 0 - 40 mmHg ± 2 mmHg; 41 - 99 mmHg 6% of reading.
• Respiration Rate: ± 1 bpm.

Environmental:

• Operating Temperature: 23 to 122 °F (-5 to 50 °C).
• Operating Atmospheric Pressure: 70 to 120 kPa.
• Operating Humidity: 10 - 95%, non-condensing.
• Storage Temperature: -22 to 158 °F (-30 to 70 °C).
• Storage Atmospheric Pressure: 50 to 120 kPa.
• Dimensions: 2.1" x 1.5" x 1.5" (5.2 cm x 3.9 cm x 3.9 cm).
• Weight: 0.13 lb (2.1 oz) with Alkaline batteries.

Batteries:

• Type: Two (2) AAA Cell Alkaline or Lithium.
• Battery Life:
• Alkaline: 8 hours.
• Lithium: 12 hours.
