Ferno 513 Series IV Pole
Cevi Med#: CM2781
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

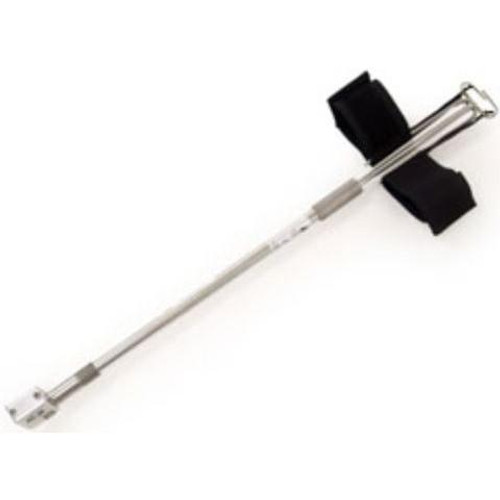

The Ferno 513 Series IV Pole permanently mount to a cot's main frame. The pole folds down alongside the cot mattress for storage when not in use.
Warranty: Limited 90 Days Free from Defects in Material and Workmanship.
When raised, a twist lock secures the IV pole in its upright position. A durable nylon insert provides smooth, straight extension of the telescoping IV pole. Adjustable height allows EMTs to place IV solutions at the appropriate level. When fully extended, the IV pole fits inside modular ambulance rear door openings without having to readjust the height. Large hook-and-loop straps stabilize IV containers.
The Ferno Model 513-LBS IV Pole mounts on the frame or mounting block of an LBS or LBS Jr. When mounted on a bariatric board, the pole mounts to a notch near the head end. The pole may be used with all LBS Jr. models, but is only compatible with LBS boards with serial number JJ 267898 or higher. When the bariatric board is not in use, the pole can be mounted on one of the LBS mounting blocks attached to the cot.
Ferno 513 Series IV Pole Features:
- Models 513-10, 513-11, 513-13, and 513-LBS Features:
-
- Permanently mounts to cot main frame.
- Adjustable height for placement of IV solutions at appropriate levels.
- Model 513-10 Pole is nonmagnetic for MRI use.
- Capable of holding 4 one-liter containers of fluid and 2 transport IV pumps.
- Large hook-and-loop straps stabilize IV containers.
- Folds along the side of the cot mattress for easy storage (excluding Model 513-13).
- Lock sleeve secures pole in upright position.
- Model 513-4 Features:
- Designed for bagged or bottles IV solutions.
- Elastic hook-and-loop restraint limits sway of solution containers during transport.
- Height-control tab adjusts for appropriate solution levels.
- Folds along cot mattress for easy storage.
- Model 513-4 is specifically made for the Model 71 Series Basket Stretcher.
Ferno 513 Series IV Pole Specifications:
- Model 513-10:
- Length Min: 33".
- Length Max: 49".
- Weight: 4 lbs.
- Load Limit: 50 lbs.
- Model 513-11:
- Length Min: 29".
- Length Max: 43".
- Weight: 3 lbs.
- Load Limit: 50 lbs.
- Model 513-13:Shipping Weight: 7 lbs.
- Length Min: 24".
- Length Max: 38".
- Weight: 4 lbs.
- Load Limit: 50 lbs.
- Shipping Dimensions: 34" x 10" x 8".
Ferno 513 Series IV Pole Configurations:
- Compatible with Models 25, 26, 30, 35, 93, and POWERFlexx Cots and 30-NM, and 35-ANM Cots.
- Specifically made for Ferno-Flex Model 28 Cot and 28Z and mounts to the rectangular main frame.
- Compatible with Models 25, 26, 30, 35 Series, 93 Series, and POWERFlexx Cots.
- Specifically made for the 71 Series Basket Stretcher.
- Designed for use with the LBS and LBS Jr (Large Body Surface).
