(Discontinued) Edan SD5 Ultrasonic Tabletop Doppler
Cevi Med#: CM15493
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$1,026.00
- Condition:
- New
- Availability:
- 5-7 Business Days
- Warranty Information:
- 2 Years
- Shipping:
- Free Shipping
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

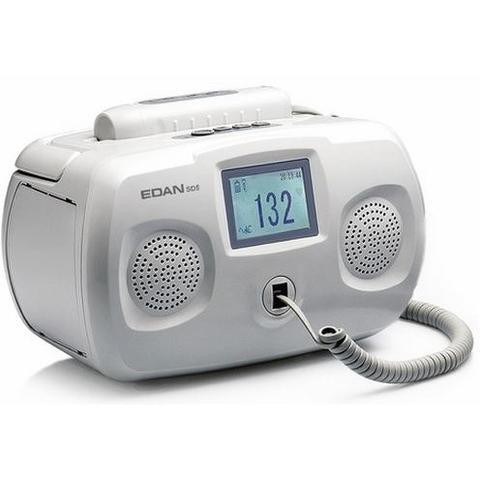

Edan SD5 Ultrasonic Tabletop Doppler
The Edan SD5 Ultrasonic Tabletop Doppler SD5 is the innovative development of Edan's fetal doppler category. The application of remote control probe, along with the brand new design, brings out the SD series to the top of the list.
The SD5 Tabletop Doppler provides unmatched accuracy in FHR detection, while its large digital display of the FHR enables it for the intended antepartum application from the 10th week pregnancy on for midwives, private doctors, general practice, OB office, and L&D outpatient service.
Features:
- Remote control
- Power Cord [(U.S.A. Standard) (#11.13.36015)].
- (2) T400mA 250 V Fuses (#01.21.64074).
- Quick Reference Card.
- User Manual.
- Eye-catching backlight 2.7" LCD screen.
- Accurate FHR calculation.
- Built-in recorder.
- Dual speakers.
- Backlight display.
- Display features battery status
- lightweight design.
- Security lock.
- Wired Interchangeable
- Probe Cable (#01.13.036108)
- Use Ultrasound Gel [(CE Mark, 250 g) (#11.57.78008)].
- Rechargeable Ni-MH battery for the main unit (#01.21.064131).
- Effective Display Area: 62 mm (W) x 44 (H) mm.
- Resolution: 128 * 64 pixel screen.
Specifications:
- Size: Main Unit: 265 mm x 155 mm x 180 mm.---Probe: 140 mm x 40 mm x 32 mm.Weight: Main Unit: 3.75 lbs (1.7 kg) with battery and probe.--Probe: 95 g.
- Power Supply: AC 100 - 240 V, Line Frequency: 50/60 Hz, DC: 7.2 V (Edan provided Ni-MH battery).
- FHR Range: 50 ~ 210 bpm.
- Resolution: 1 bpm.
- Accuracy: ± 3 bpm.
- Recording Length: 240 s.
- White Backlight: Two Modes Adjustable (Off, On).
- Audio Output Power: 2 W.
- Earphone Jack: 3.5 mm.
- Auto Shut-Off: 1 min / 3 min with no signal or operation.
- Batteries working for more than 10 hours.
Probes
- #SD5-12.01.110744: 2 MHz (Recommended).
- #SD5-12.01.110745: 3 MHz.
Nominal Frequency:
- 2 MHz Probe: 2 MHz.
- 3 MHz Probe: 3 MHz.
- Working Frequency:2 MHz Probe: 2 MHz ± 10%.
- 3 MHz Probe: 3 MHz ± 10%.
- Edan SD5/SD6 Ultrasonic TableTop Doppler Brochure
- Warranty Edan SD5 Ultrasonic Tabletop Doppler
- SD5, SD6 Ultrasonic Tabletop Doppler Specification List
