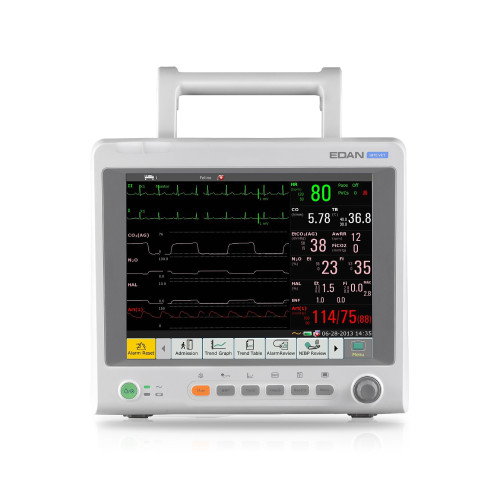

Edan iM70 Patient Monitor With Capnography

• Ideal for night time operations and divisions which require a dust-free environment.
• The iM70 is embedded with various communication capabilities including HL7, LAN, Nurse Call, Defibrillator Synchronization, and optional built-in Wi-Fi.
• With a wide range of optional parameters from IBP to cardiac output, from capnography to anesthesia gas
• Large high resolution color display.
• No fan design.
• Waterproof and dust proof keypad design.
• Pacemaker detection.
• Electrosurgical interference proof.
• Defibrillation protection and defibrillation synchronization.
• Pitch tone.
• iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection, and HR measurement.
• iMAT SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance.
• iCUFS NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients.
• Large storage capacity.
• Nurse call function.
• LAN connection with DHCP support.
• Bi-directional communication with the MFM-CMS central station.
• HL7 support.
• VGA output.

 Warranty: 2 Years

Options:

Included

Specifications:

• Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO2, EDAN NIBP, PR, 2-TEMP.
• Optional Parameters: Nellcor OxiMax SpO2, Omron NIBP, 2-IBP, Respironics CO2, C.O., Phasein Anesthetic Gas/O2.
• Display: 12.1" (30.7 cm).
• Display Resolution: 800 x 600.
• Dimensions: 12.9" x 6.2" x 11.2" (328 mm x 158 mm x 285 mm).
• Weight: < 12 lb (< 5.5 kg).

Power Supply:

• Current: 1.4A-0.7A.
• Fuse: T3.15AH, 250 V.

Battery Operating Time:

• 2.1 Ah: 150 minutes or longer.
• 4.2 Ah: 300 minutes or longer.

Battery Charging Time:

• 2.1 Ah: 200 minutes or shorter.
• 4.2 Ah: 360 minutes or shorter.

Monitor Options:

• Temperature Probe: Skin Temperature Probe.
• Temperature Probe: Rectal / Oral Temperature Probe.
• Reusable SpO2 Sensor: Neonate (< 3 kg / < 6.6 lbs) Wrap Reusable SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• Reusable SpO2 Sensor: Pediatric (10 - 50 kg / 22 - 110 lbs) Reusable Silicone Soft-tip SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable SpO2 Sensor (Lemo / 2.5 m). Compatible with Edan M series patient monitors (Standard).
• Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
• Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable Silicone Soft-tip SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.

NIBP Cuff:

• Infant (10 - 19 cm) Reusable NIBP Cuff, CM 1301.
• Child (18 - 26 cm) Reusable NIBP Cuff, CM 1302.
• Adult (25 - 35 cm) Reusable NIBP Cuff, CM 1303 (Standard).
• Large Adult (33 - 47 cm) Reusable NIBP Cuff, CM 1304.

ECG Cable:

• 3-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
• 3-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation (Standard).
• 5-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation.
• 5-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.

Accessories:

commonly purchased with:

Respironics LoFlo Sidestream ETCO2 Module:

• Disposable Adult CO2 Nasal Cannula (3468ADU-00)
• Adult/Pediatric Airway Adapter Set with Dehumidification tubing (3473ADU-00)
• Disposable Sampling Line Kit with Dehumidification Tubing (3475-00)

Respironics CAPNOSTAT5 Mainstream ETCO2 Module:

• Disposable Adult Airway Adapter.(6063-00)
• Disposable Neonatal (infant/pediatric) Airway Adapter (6312-00)
• (02.04.240256)Thermal Printer Upgrade Kit.
• (01.57.78035)Thermal Printer Paper.
• (01.16.78122)Touch Screen Upgrade.
• (02.04.240050)Data Management Kit.
• (MT-207)Rolling Stand with Mounting Plate and Basket.
• Internal WiFi Module.(#wifi)

 Literature

• Edan iM Series Patient Monitor User Manual
• Edan iM70 Patient Monitor Brochure
