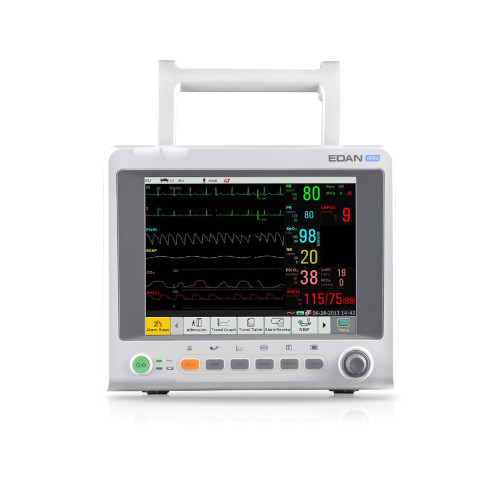

Edan iM60 Patient Monitor without Capnography
Cevi Med#: CM31912
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$3,300.00 - $3,790.00
- Condition:
- New
- Availability:
- 7-10 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 2 Years
- Shipping:
- Free Shipping
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Edan iM60 Patient Monitor without Capnography
Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO2, EDAN NIBP, PR, 2-TEMP
- Capabilities including HL7, LAN, Nurse Call, and Defibrillator Synchronization, and optional built-in Wi-Fi
- Employs low-power consumption design with its fanless structure which creates no noise and no dust accumulation.
- Large, high resolution screen.
- No fan design.
- Waterproof and dust proof keypad design.
- Pacemaker detection.
- Electrosurgical interference proof.
- Defibrillation protection and defibrillation synchronization.
- Pitch tone.
- iSEAP ECG algorithm optimized for arrhythmia detection, pacemaker detection and HR measurement.
- iCUFS NIBP algorithm optimized for cardiac patients, hypertensive patients, and neonatal patients.
- iMAT SpO2 algorithm with outstanding motion resistance and low perfusion resistance performance.
- Large storage capacity.
- Nurse call function.
- LAN connection with DHCP support.
- Optional built-in Wi-Fi.
- Bi-directional communication with the MFM-CMS central station.
- HL7 support.
- VGA output.
Warranty 2 Years
Included :
| Product | Option |
| Skin Temperature Probe | 01.15.040187 |
| Adult Reusable SpO2 Sensor | 12.01.109069 |
| Adult Reusable NIBP Cuff | 01.57.040205-11 |
| 3-lead ECG Integrative Cable with Snap Leadwires | 01.57.471095-10 |
| NIBP Tube with Connector | 01.57.471005 |
| (30) Adult Disposable Adhesive Electrodes | 11.57.471056 |
| Power Cord. | 01.13.036106 |
| Rechargeable Lithium-Ion Battery | 01.21.064143 |
| Ground Cable | 11.13.114214 |
| User Manual | # |
Monitor Options:
| Product | Option |
| iM60 10" Patient Monitor, with Accessories. Patient Ready w/ open CO2 and IBP ports. | iM60 |
| iM60 10" Patient Monitor, with Accessories. Patient Ready w/ open CO2 and IBP ports. Printer installed in device | iM60.P |
| EdanUSA 10" Patient Monitor with Accessories. Patient Ready w/ open CO2 and IBP ports. Touch Screen | iM60_Touch |
| EdanUSA 10" Patient Monitor, printer installed, with Accessories. Patient Ready w/ open CO2 and IBP ports. Touch Screen. Printer installed in device | iM60_Touch.P |
| EdanUSA 10" Patient Monitor with Accessories. Patient Ready w/ open CO2 and IBP ports. Touch Screen with Wifi | iM60_Touch_WiFi |
| EdanUSA 10" Patient Monitor, printer installed, with Accessories. Patient Ready w/ open CO2 and IBP ports. Touch Screen with Wifi. Printer installed in device | iM60_Touch_WiFi.P |
| EdanUSA 10" Patient Monitor with Accessories. Patient Ready w/ open CO2 and IBP ports. with WiFi | iM60_WiFi |
| EdanUSA 10" Patient Monitor, printer installed, with Accessories. Patient Ready w/ open CO2 and IBP ports. with WiFi | iM60_WiFi.P |
Specifications:
- Standard Parameters: 3/5-lead ECG, RESP, EDAN SpO2, EDAN NIBP, PR, 2-TEMP.
- Optional Parameters: Nellcor OxiMax SpO2, Omron NIBP, 2-IBP, Respironics CO2, C.O., Phasein Anesthetic Gas/O2.
- Display: 10.4" color screen
- Display Resolution: 800 x 600.
- Dimensions: 12.9" x 6.2" x 11.2" (328 mm x 158 mm x 285 mm).
- Weight:9.9 lb (< 4.5 kg).
Power Supply:
- Current: 1.4A-0.7A.
- Fuse: T3.15AH, 250 V.
Battery Operating Time:
- 2.1 Ah: 150 minutes or longer.
- 4.2 Ah: 300 minutes or longer.
Battery Charging Time:
- 2.1 Ah: 200 minutes or shorter.
- 4.2 Ah: 360 minutes or shorter.
- Temperature Probe: Skin Temperature Probe.
- Temperature Probe: Rectal / Oral Temperature Probe.
- Reusable SpO2 Sensor: Neonate (< 3 kg / < 6.6 lbs) Wrap Reusable SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- Reusable SpO2 Sensor: Pediatric (10 - 50 kg / 22 - 110 lbs) Reusable Silicone Soft-tip SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable SpO2 Sensor (Lemo / 2.5 m). Compatible with Edan M series patient monitors (Standard).
- Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
- Reusable SpO2 Sensor: Adult (> 30 kg / > 66 lbs) Reusable Silicone Soft-tip SpO2 Sensor (DB9 / 1 m). Compatible with Edan M series patient monitors with use of extension cable.
NIBP Cuff:
- Infant (10 - 19 cm) Reusable NIBP Cuff, CM 1301.
- Child (18 - 26 cm) Reusable NIBP Cuff, CM 1302.
- Adult (25 - 35 cm) Reusable NIBP Cuff, CM 1303 (Standard).
- Large Adult (33 - 47 cm) Reusable NIBP Cuff, CM 1304.
ECG Cable:
- 3-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
- 3-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation (Standard).
- 5-Lead ECG Integrative Cable with Leadwires, Snap (AHA) Defibrillation.
- 5-Lead ECG Integrative Cable with Leadwires, Grabber (AHA) Defibrillation.
