Edan Elite V8 Modular Patient Monitor
Cevi Med#: CM9118
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$6,685.99 - $8,415.99
- Condition:
- New
- Availability:
- 7-10 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 2 Years
- Shipping:
- Free Shipping
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

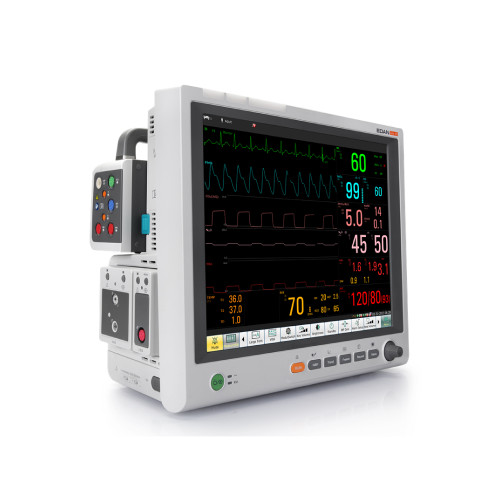

Edan Elite V8 Modular Patient Monitor
- Designed as a full modular monitor, elite V8 dedicates to provide comprehensive healthcare solutions especially for critical divisions.
- Able to monitor a wide range of parameters simultaneously, adapting from critical cares to anesthesia monitoring, with additional monitoring capabilities including ICG, RM, and BIS.
- Such functions provide quick references to help decide the adjustments of nursing and treatment plans.
- The high resolution color TFT-LCD together with the up-to-date customizable shortcut menu design brings easy one-touch access
- Being HL7 compatible with built-in Wi-Fi capability, elite V8 can connect to hospital network seamlessly and interact with the hospital information system.
Warranty :2 Year
Included
| Product | # |
| Power cable (AHA standard) | 11.13.36015 |
| Ground cable | 11.13.114214 |
| User manual | 01.54.455329-0.001 |
Not included
| Adult reusable SpO2 sensor | 02.01.210120-11 |
| Adult reusable NIBP cuff | 01.57.040205-13 |
| Adult skin temperature probe | 01.15.040225-11 |
*Available Upon Request*
Optional Modules:
- 22.08.208031: V-IBP Module.
- 22.08.208051: V-SpO2 Module.
- 22.08.208029: V-C.O. Module.
- 22.08.208020: V-CO2 Sidestream Module.
- 22.08.208021: V-CO2 Mainstream Module.
- V-AG Sidestream Module.
- 22.08.208023: V-AG Mainstream Module.
- 22.08.208022: V-AG Sidestream with O2 Module
Features:
- 3/5-Lead ECG, RESP, NIBP, SpO2, 2-TEMP, PR.
- Arrhythmia, S-T Analysis, OxyCRG, Large font display.
- 720 seconds full-disclosure waveforms review.
- 150-hour graphic and tabular trends of all parameters.
- Bi-directional communications with central monitoring system.
- Waveform color adjustable.
- Customized alarm setting.
- 17" color TFT LCD 1280*1024 screen enables top-class quality display of waveforms and measurements.
- Touch screen.
I/O:
- 4-USB.
- PAM interface.
- VGA.
- Analog output/nurse call.
- Defibrillation synchronization output.
- Ethernet interface.
Edan Elite V8 Modular Patient Monitor Main XM Module:
| Options | Number |
| XM1 Module (3/5 Lead ECG, RESP, NIBP, 2-TEMP, PR, Edan SpO2, + XM accessories). | 22.08.208017 |
| XM1-J Module (3/5 Lead ECG, RESP, NIBP, 2-TEMP, PR, Edan SpO2, 2-IBP, + XM accessories). | 22.08.208047 |
| XM2 Module (3/5/12 Lead ECG, RESP, NIBP, 2-TEMP, PR, Edan SpO2, + XM accessories). | 22.08.208048 |
| XM2-J Module (3/5/12 Lead ECG, RESP, NIBP, 2-TEMP, PR, Edan SpO2, 2-IBP, + XM accessories) | 22.08.208044 |
XM Accessories:
- 7-Pin Extension Cable for SpO2 (Lemo)
Reusable Edan SpO2 Sensor:
- 12.01.110492-11: Edan Neonate (2 Sensor, 1 m.
- 02.01.210121-11: Edan Pediatric (10-50 kg / 22-110 lbs) (DB9) Silicone Soft-Tip Reusable SpO2 Sensor, 1 m.
- 02.01.210119-11: Edan Adult (> 30 kg / > 66 lbs) (Lemo) Reusable SpO2 Sensor, 2.5 m.
- 02.01.210120-11: Edan Adult (> 30 kg / > 66 lbs) (DB9) Reusable SpO2 Sensor, 1 m (Recommended).
- 02.01.210122-11: Edan Adult (> 30 kg / > 66 lbs) (DB9) Silicone Soft-Tip Reusable SpO2 Sensor, 1 m.
Reusable NIBP Cuff:
- 01.57.040212: Infant 10-19 cm Cuff (CM 1301).
- 01.57.040211: Child 18-26 cm Cuff (CM 1302).
- 01.57.040205-13: Adult 25-35 cm Cuff (CM 1303) (Recommended).
- 01.57.040210-12: Large Adult 33-47 cm Cuff (CM 1304).
Temperature Probe:
- 01.15.040225-11: 2-Pin Adult Skin Temperature Probe (10 K / 25ç C) (Recommended).
- 01.15.040226-10: 2-Pin Adult Skin Temperature Probe (2.252 K / 25ç C).
- 01.15.040227-11: 2-Pin Adult Intracavitary Temperature Probe (2.252 K / 25ç C).
- 01.15.040228-10: 2-Pin Adult Intracavitary Temperature Probe (10 K / 25ç C).
- ECG Trunk Cable, 5-Lead, Defibrillator-Proof, AHA, Reusable
- ECG Limb Wire, 5-Lead, Snap, AHA, 0.9 m, Reusable
- (30) ECG Electrodes, Adult, Disposable
Literature
2 Years
