Dymedix TriplePlay Reusable Airflow Sensor - Small (10-14000-0401)
Cevi Med#: CM28022
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$58.90
MSRP:
$80.00
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 1 Year
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

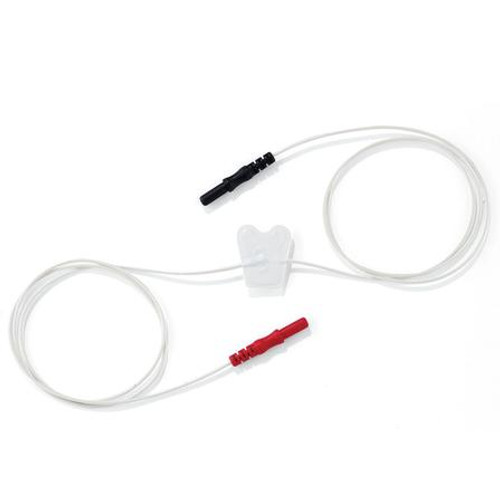

Dymedix TriplePlay Reusable Airflow Sensor - Small
- Help to detect Apnea, hypopnea, Upper Airway Resistance Syndrome - snore
- Use with a Dymedix FM Airflow Filtration Module.
- All Dymedix Airflow sensors are AASM compliant.
- PVDF permanent electrical charge and instantaneously generates a voltage when presents changes (temperature- pressure- force- vibrations-sound)
- Is easy-to-clean sensor have an oral / nasal design
- PVDF is much more flexible and responsive to sleep-related physiological
- PVDF are more Sensitive temperature and pressure change (1,000 times faster)
Specifications
| Product # | Physical Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 10-14000-0401 | .88" (H), 1.0" (W) | 6" (L), 6" (W) | 24" | 0.9 oz | 1/ea |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
1 Year
