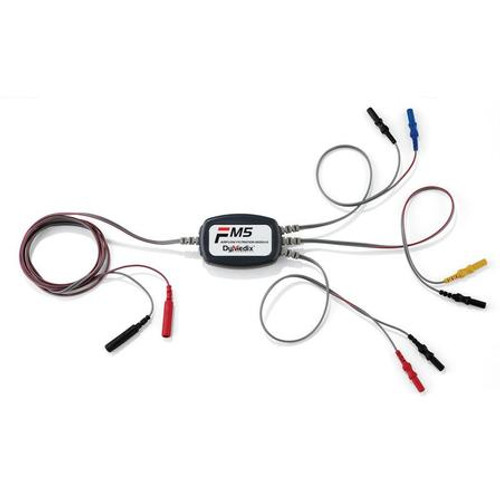

Dymedix TriplePlay FM5 Airflow Filtration Module - Embla (12-40311-0001)
Cevi Med#: CM28045
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$203.00
MSRP:
$240.00
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 1 Year
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Dymedix TriplePlay FM5 Airflow Filtration Module - Embla
FM5 AIRFLOW FILTRATION MODULE Provides the same functionality as the FM4, but includes an additional snore channel. features a snore output channel, along with two airflow outputs - one for apnea and one for hypopnea or upper airway resistance syndrome .
Compatible
- Embla PSG systems and intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors.
Specifications
| Product # | Physical Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 12-40311-0001 | 2.25 (L), 0.5" (W), 1.5" (H) | 6" (L), 6" (W) | 60" | 2 oz | 1/ea |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
1 Year
