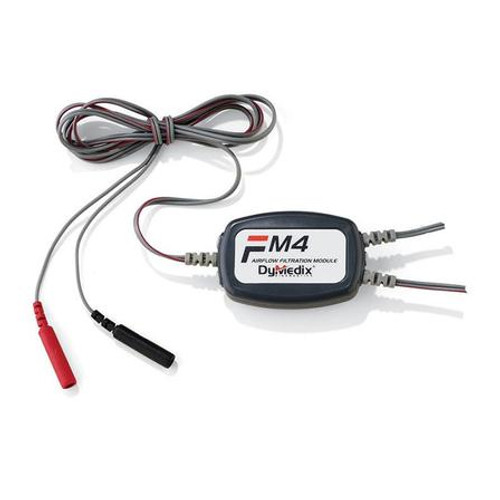

Dymedix TriplePlay FM4 Airflow Filtration Module - Embla
Dymedix TriplePlay FM4 Airflow Filtration Module - Embla It is designed for users who prefer having two separate channels of airflow waveforms, one for identifying apnea events, and another for identifying hypopnea events.ideal airflow filtration module for a sleep lab conducting more sophisticated studies that may use two channels at once.
- provides two airflow outputs.
- provides the smooth FM1 waveform in one output
- provides the faster FM2 waveform in the other output.
- provides two separate channels
Specifications
| Product # | Physical Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 12-40301-0001 | 2.25 (L), 0.5" (W), 1.5" (H) | 6" (L), 6" (W) | 60" | 2 oz | 1/ea |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
1 Year
