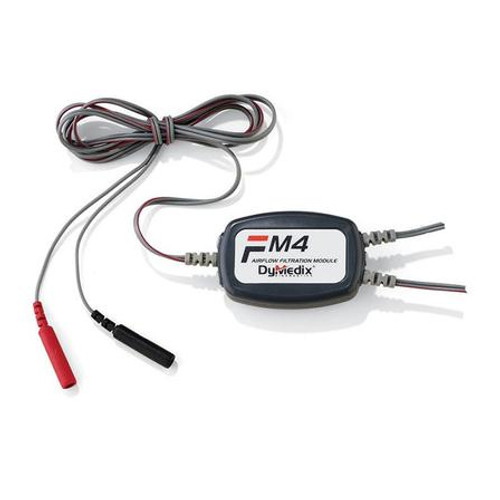

Dymedix TriplePlay FM4 Airflow Filtration Module - Alice 5 (12-40302-0001)
Cevi Med#: CM28042
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 1 Year
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Dymedix TriplePlay FM4 Airflow Filtration Module - Alice 5
FM4 - Alice 5 Filtration Module and interface cable For use with a Dymedix TriplePlay Airflow Sensor provides two airflow outputs.
It provides FM1 waveform in one output, and the faster FM2 waveform in the other output. users can have two separate channels of airflow waveforms, one identifying apnea , and identifying hypopnea. ideal airflow filtration module for a sleep lab conducting more sophisticated studies that may use two channels at once.
filtration module is compatible with Alice 5 PSG systems, and is intended for use with Dymedix TriplePlay disposable or reusable polyvinylidene fluoride (PVDF) airflow sensors.
Specifications
| Product # | Physical Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 12-40302-0001 | 2.25 (L), 0.5" (W), 1.5" (H) | 6" (L), 6" (W) | 60" | 2 oz | 1/ea |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
