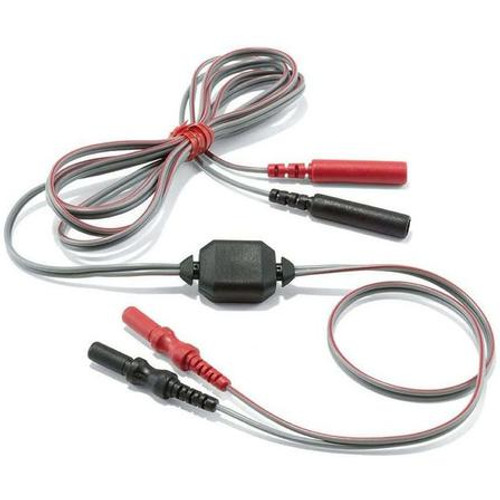

Dymedix TriplePlay FM1 Airflow Filtration Module - Alice 5 (12-10003-0001)
Cevi Med#: CM28028
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$196.35
MSRP:
$200.00
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 1 Year
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Dymedix TriplePlay FM1 Airflow Filtration Module - Alice 5
- All Dymedix Airflow Filtration Modules comply with AASM Technical Specifications.
- For use with a Dymedix TriplePlay Airflow Sensor , disposable or reusable polyvinylidene fluoride airflow sensors.
- Provides one output smooth sinusoidal waveforms focus apnea - hypopnea events
- Uses a more expanded frequency filtering into the waveform.
- In Apnea - Hypopnea events, the changes in the airflow are easily identified.
- This airflow filtration module is compatible with Alice 5 PSG systems
- PVDF are more Sensitive temperature and pressure change (1,000 times faster
Specifications
| Product # | Physical Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 12-10003-0001 | 0.75" (L), 0.25" (W), 0.5" (H) | 6" (L), 6" (W) | 60" | 1.2 oz | 1/ea |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
