Dymedix PerfectFit 3D Effort Belt Sensor Kit - Universal (1.5 mm) (18-13200-0001)
Cevi Med#: CM15538
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$510.32
MSRP:
$544.50
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 1 Year
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

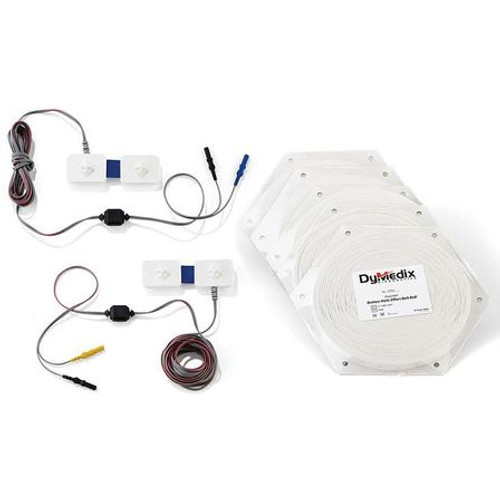

Dymedix PerfectFit 3D Effort Belt Sensor Kit - Universal (1.5 mm)
- Belt Sensor Kit - Universal (1.5 mm)
- Two reusable button sensors (Chest-Abdomen)
- 250 yards of the PerfectFit 3D Effort Belt Strap
- Compatible with Embla, Alice 5, Alice 6, and Grael.
- Clean signals and good polarity
- Easy Set up
- PVDF are more Sensitive temperature and pressure change (1,000 times faster)
- All Dymedix Airflow sensors are AASM compliant
- Fastest signal in the sleep sensor industry
Specifications
| Product # | Sensor Size | Module Size | Shipping Dimensions | Cable Length | Weight | Pcs/Pkg |
| 18-13200-0001 | 3.5" (L), 1.0" (H) | 2.25" (L), 0.5" (W), 1.5" (H) | 14" (L) x 12" (W) x 6" (H) | 100" | 0.5 lbs (8.04 oz) | 1/Kit |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 to 104 °F | -4 to 140 °F | 5 - 95% (non-condensing) |
1 Year
