Dymedix FastTrack Effort Pack (11-44000-3002)
Cevi Med#: CM15595
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

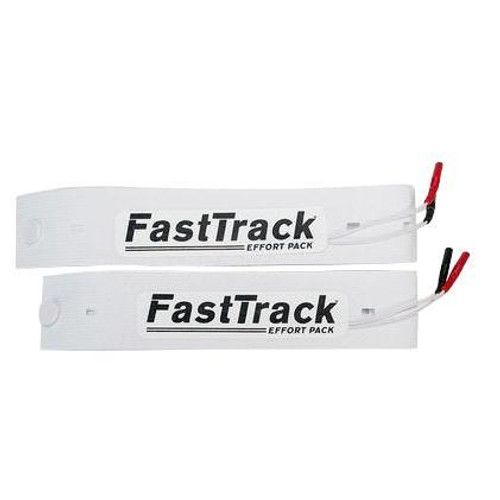

Dymedix FastTrack Effort Pack
- Each Pack includes 2 cut-to-fit belts with PVDF sensors
- adult and pediatric sizes
- Pack require a FastTrack Effort Interface Kit (2 interface cables)
- strap sensors can then be connected to two interface cables that are then connected to the testing system
- straps compatible with all PSG Systems
- Fastest signal in the sleep sensor industry
- PVDF are more Sensitive temperature and pressure change (1,000 times faster)
- All Dymedix are AASM compliant
- Optional sum module available.
- Simple patient application for in-home sleep studies.
Specifications
| Product # | Options | Pcs/Pkg | Pcs/Pkg | Pcs/Pkg |
| 11-44000-3002 | FastTrack Effort Pack, Pediatric | 1/Pack | 1/Pack | 1/Pack |
| 11-44000-3020 | FastTrack Effort Pack, Pediatric | 20 Pack | 20 Pack | 20 Pack |
| 11-44000-3040 | FastTrack Effort Pack, Pediatric | 40/Pack | 40/Pack | 40/Pack |
| 11-44000-7502 | FastTrack Effort Pack, Adult | 1/Pack | 1/Pack | 1/Pack |
| 11-44000-7520 | FastTrack Effort Pack, Adult | 20 Pack | 20 Pack | 20 Pack |
| 11-44000-7540 | FastTrack Effort Pack, Adult | 40/Pack | 40/Pack | 40/Pack |
Typical Polygraph Settings
| Sensitivity | Low Frequency Filter | High Frequency Filter |
| 100 - 300 μV/mm | 0.1 Hz | 15 Hz |
Typical Signal Amplitude
| Cable Material | Typical | Variation |
| Gray PVC insulation tinsel wire | 1 mV peak to peak | Signal amplitudes vary. Response is dependent on variables including sensor position, strap tension, and polygraph characteristics. |
| Sensor Technology | Operating Conditions | Storage Temperature | Operating and Storage Humidity |
| PVDF sensor, ABS filtration module | 40 - 104°F | -4 - 140°F | 5 - 95% (non-condensing) |
1 Year
