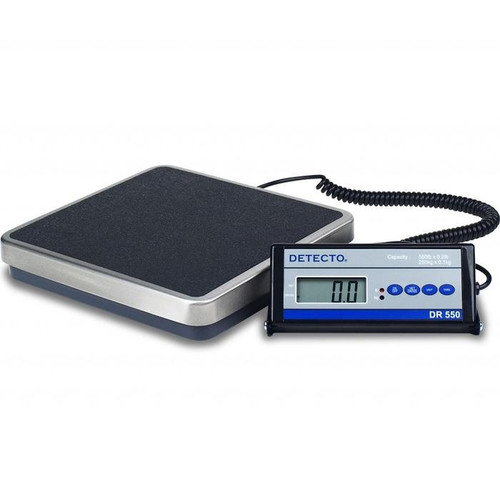

Detecto DR Series Portable Digital Floor Scale Model DR550C
The Detecto DR Series Portable Digital Floor Scale includes a 9 V, 100 mA DC Adapter. The scale comes with a lightweight mobile weighing platform for easy transport and a slip-resistant rubber mat for traction and patient stability. The portable lightweight platform and large, bold readouts make this scale ideal for mobile clinics, home healthcare nurses, doctor offices, general purpose use, and home bathroom weighing. The movable display may be placed on a surface or mounted to a wall, wherever it is most convenient. Optional Carrying Case sold separately.
Features:
- Compact size.
- Coiled cable allows versatile indicator positioning.
- RS232 serial port for optional printer connectivity (DR400C only).
- Simple four-key operating.
- Units: Pounds / kilograms.
- Zero: Established on power up routine and maintained by auto-zero circuitry.
Specifications:
- Scale Base Platform Dimensions: 11.9" (W) x 12.3" (D) x 2.2" (H) (30.2 cm x 31.3 cm x 5.6 cm).
- Weight Indicator Dimensions (minus bracket): 8.8" (W) x 3.6" (D) x 1.8" (H) (22.2 cm x 9.2 cm x 4.4 cm).
- Display Type: Liquid Crystal Display (LCD), 4-digit, 7-segment.
- LCD Display Dimensions: 2.9" (W) x 1.1" (H) (7.5 cm x 2.7 cm).
- LCD Digit Dimensions: 0.9" (H) x 0.4" (W) (2.4 cm x 1 cm) per digit.
Cable Length (indicator to base):
- Coiled: 33.4" (84.8 cm).
- Fully Extended: 117.5" (298.5 cm).
- Power: Six AA 1.5 V batteries (not included) or UL listed AC Adapter (included).
- Tare: 100% of full scale capacity.
- Operating Temperature: 40 - 105 °F (5 - 40 °C).
- Operating Humidity: 25 - 95% RH.
Options
| Model | Accessories |
| #DR400C: 400 lb x 0.5 lb / 180 kg x 0.2 kg Capacity. | Platform: Mild steel with rubberized mat. Keypad: LB/KG, TARE/HOLD, ON, OFF. |
| #DR550C: 550 lb x 0.2 lb / 250 kg x 0.1 kg Capacity.. | Platform: Stainless steel with rubberized mat. Keypad: ON/OFF, NET/GROSS, UNIT, TARE. |
Detecto DR400C Digital Platform Scale Operation Manual
Detecto Model DR550 Digital Scale Owner's Manual
Detecto DR400C/DR550C Portable Digital Floor Scales Bulletin
