Detecto Bariatric Scale with Digital Height Rod
Cevi Med#: CM2150
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
- Condition:
- New
- Availability:
- Usually ships in 1-2 Weeks
- Estimated Shipping Date:
- ...
- Width:
- 45.00 (in)
- Height:
- 30.00 (in)
- Depth:
- 25.00 (in)
- Warranty Information:
- 2 Years
- Shipping:
- $70.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.

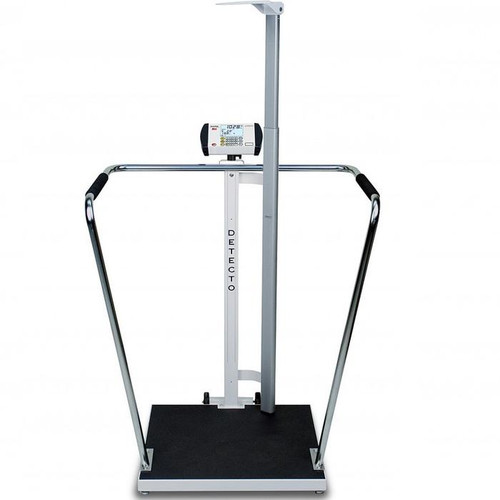

Detecto Digital Bariatric Scale with Height Rod
Detecto Digital Bariatric Scale with Height Rod has a step-on, non-skid platform, a steel construction, padded grips on both handrails for added patient assurance and comfort, and a 1LOOK MedVue screen that displays height, weight, and BMI simultaneously. The digital height rod will measure up to 6'7” and scale is EMR/EHR ready with a RS232 serial port.
The powerful MedVue digital weight indicator is connected to the Digital Bariatric Scale with Height Rod and features metric conversion, auto shut-off, selectable sleep-mode, selectable filtering, 99 tare storage, serial input/output, USB device port, 200 stored transactions, and 14-digit patient ID. Ability to work with the Detecto P50 Thermal Tape Printer (#809161188400) for quick printouts. Wi-Fi and serial ports are not the only means for data transmissions, the Welch Allyn WACONNECT connectivity kit (#809161189209 / not included) connects Welch Allyn Connex Vital Signs Monitors and integrated wall systems with the MedVue to transfer data directly to EMR.
Specifications
- Weight Display: 5 digit, 7 segment, 0.875" (22.23 mm) high LCD.
- Height Display: 4 digit, 7 segment, 0.5" (12.7 mm) high LCD.
- Body Mass Index Display: 3 digit, 7 segment, 0.5" (12.7 mm) high LCD.
- Keypad: Membrane-type keyboard, 19 keys.
- Construction: Painted Steel.
- Storage: 200 transactions and 99 tare storage.
- Power: 6 "C" cell Alkaline, Ni-Cad or NiMH batteries (not included), or optional 12 VCD 1.25A wall plug-in AC adapter (# WV1PWR).
- Battery Life: 7,560 weighments (with backlight fully on)/ 10,620 weighments (with backlight fully off).
- Operating Temperature: 14 to 104 °F (-10 to 40 °C).
- Enclosure Size: 9.8" W x 6.8" H x 1.8" D (248.9 mm x 172.7 mm x 45.7 mm).
- LCD Viewing Range: Up to 30 feet / 10 meters for weight digits.
- Integral Wheels.
Options and accessories
| Product # | Capacity | Size |
| Bariatric Scale Digital - 6854DHR | 600 lb x .2 lb / 270 kg x .1 kg | 18" x 14" Platform Digital Height Rod |
| Bariatric Scale, Digital - 6857DHR | 1000 lb x .2 lb / 450kg x .1 kg | 24" x 24" Platform Digital Height Rod |
| Bariatric Scale Digital - 6854DHR-AC AC Adapter | 600 lb x .2 lb / 270 kg x .1 kg | 18" x 14" Platform Digital Height Rod |
| Bariatric Scale, Digital -6857DHR-AC AC Adapter | 1000 lb x .2 lb / 450kg x .1 kg | 24" x 24" Platform Digital Height Rod |
Optional Ethernet:
- MVWIFI Wi-Fi Ethernet (#809161189704): Card for wireless Ethernet connectivity. Be connected via Wi-Fi while having USB and serial ports free to be connected to other devices.
- MVIP Wired Ethernet (#809161189605): Wired Ethernet option card.
Detecto EMR/EHR Connectivity Brochure
Detecto Bariatric Scale with Digital Height Rod Bulletin
