ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit
American Diagnostic Corporation
Cevi Med#: CM8102
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
$220.22 - $227.02
- Condition:
- New
- Availability:
- 5-7 Business Days
- Estimated Shipping Date:
- ...
- Warranty Information:
- 3 Years (Manometer carries a lifetime calibration warranty)
- Shipping:
- $10.00
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
ADC System 5 Portable 5 Cuff Sphygmomanometer Multicuff Kit

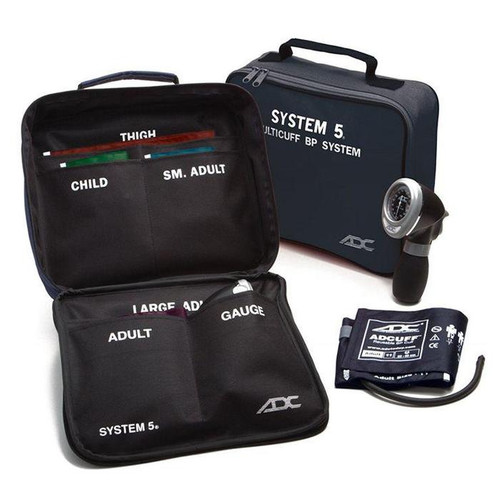

Includes an ADC 804N palm gauge manometer, Child, Small Adult, Adult, Large Adult, and Thigh calibrated Nylon Adcuffs, and a multi-pocketed, heavy duty 600D nylon attaché style case that keeps each component securely in place, yet instantly accessible.
Features:
- Revolutionary Diagnostix #804 palm style manometer with precision Japanese engineered movement rated to 50,000 cycles.
- Quick release luer slip connector to permit rapid selection of the appropriate cuff.
- Ambidextrous trigger release air valve.
- Dual zipper closure permits rapid access, and protects against the elements.
- Compact enough to fit in most emergency bags or trauma boxes.
- Reinforced carry handle allows for wall mounting in the open position.
- Adcuff nylon cuff features the Size Guide marking system.
- Not made with natural rubber latex.
- Assembled, inspected, and packaged in the U.S.A. from foreign components.
- Meets or exceeds ANSI/AAMI/ISO 81060-1.
Specifications:
- Sphyg Type: Multicuff.
- Gauge Product Number: #804N.
- Gauge Warranty: Lifetime.
- Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
- Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
- Storage Temp: -4º F (-20º C) - 131º F (55º C).
- Valve Type: Integral.
- Number of Tubes: 1.
- Cuff Type: ADCUFF.
- Inflation Warranty: 3 Years. Storage Case Dimensions (Closed): 10" x 9" x 4" (25.4 cm 22.86 cm 10.16 cm).
- Storage Case with Sphyg and Cuffs Weight: 2.5 lbs (1.13 kg).
- Cuff Sizes: Child: 5.12" - 7.68" (13 cm - 19.5 cm). Small Adult: 7.48" - 10.63" (19 cm - 27 cm). Adult: 9.06" - 15.75" (23 cm - 40 cm). Large Adult: 13.39" - 19.69" (34 cm - 50 cm). Thigh: 15.75" - 25.98" (40 cm - 66 cm).
Options:
| Model | Description - Configuration |
| 740-MCC | Standard |
| 740-N | Navy |
| 740-OR | Orange |
| 740-MCC1 | Standard 1 pc Cuffs |
3 Years (Manometer carries a lifetime calibration warranty)
