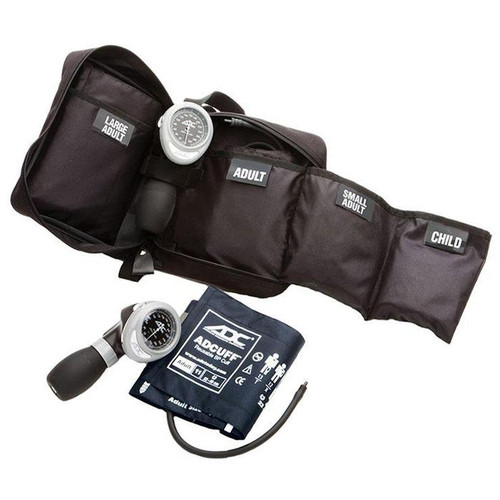

ADC Portable 4 Cuff Sphygmomanometer Multicuff Kit
Includes an ADC 804N palm gauge manometer, Child, Small Adult, Adult, and Large Adult calibrated Nylon Adcuffs with single tube bladders, and a multi-pocketed, heavy duty, black nylon zipper case that keeps each component securely in place, yet instantly accessible.
Features:
- Case measures a compact 8” x 6” x 3.5” and can easily be stored in most emergency boxes and trauma kits.
- One-tube bladder with quick release luer slip connector.
- Features our #804 series palm gauge with integrated infinite control trigger valve.
- 804 utilizes a Japanese engineered movement housed in a zinc safety cage within its rugged ABS housing.
- Not made with natural rubber latex.
- Assembled, inspected, and packaged in the U.S.A. from foreign components.
- Meets or exceeds ANSI/AAMI/ISO 81060-1.
Specifications:
- Sphyg Type: Multicuff.
- Gauge Product Number: #804N.
- Gauge Warranty: Lifetime.
- Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
- Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
- Storage Temp: -4º F (-20º C) - 131º F (55º C).
- Valve Type: Integral.
- Number of Tubes: 1.
- Cuff Type: ADCUFF.
- Cuff Sizes: Child: 5.12" - 7.68" (13 cm - 19.5 cm). Small Adult: 7.48" - 10.63" (19 cm - 27 cm). Adult: 9.06" - 15.75" (23 cm - 40 cm). Large Adult: 13.39" - 19.69" (34 cm - 50 cm).
- Inflation Warranty: 3 Years.
- Zipper Storage Case Product Number: 8814BK.
Options:
| Code | Color |
| 732-BK | Black |
| 732-MCC | Standard |
| 732-N | Navy |
| 732-OR | Orange |
| 732-MCC1 | 1 pc Cuffs |
3 Years (Manometer carries a lifetime calibration warranty)
