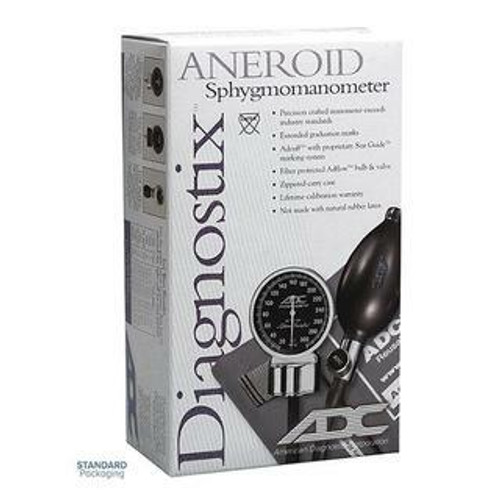

ADC Diagnostix 700 Pocket Aneroid Sphygmomanometer - Adult
American Diagnostic Corporation
Cevi Med#: CM27495
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
Check out the deliveries we have made in the U.S.A.
Here is a digital portfolio deliveries and installations done by us across the United States. Select a state to see pictures from clinical offices, hospitals, and medical universities in your area.
ADC Diagnostix 700 Pocket Aneroid Sphygmomanometer - Adult
Features a chrome-plated precision crafted 300 mm Hg manometer, an Adcuff Nylon Cuff, and includes a leatherette carrying case with a durable nylon zipper.
Available in either standard or retail display packaging.
Features:
- Luminescent dial features bold numerals and extended graduation marks for easy reading in all light conditions and from virtually any angle.
- Adcuff Nylon Cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing.
- Adflow filter screen check and deflation valves reduce dust build-up.
- Adflow chrome-plated brass air release valve with micro-threads for precise deflation control.
- Not made with natural rubber latex.
- Assembled, inspected, and packaged in the U.S.A from foreign components.
- Meets or exceeds ANSI/AAMI/ISO 81060-1.
Specifications:
- Sphyg Type: Pocket.
- Gauge Product Number: #800.
- Gauge Warranty: Lifetime.
- Sphyg Accuracy: +/-3 mm Hg at 50º F (10º C) - 104º F (40º C).
- Sphyg Accuracy at Extended Temperature Range: +/- 3 mm Hg or 2%. Whichever is greater at < 50º F (10º C) and > 104º F (40º C).
- Storage Temp: -4º F (-20º C) - 131º F (55º C).
- Valve Type: ADFLOW.
- Number of Tubes: 2.
- Cuff Type: ADCUFF.
- Cuff Size: Adult.
- Cuff Range: 9" - 15.7" (23 cm - 40 cm).
- Zipper Storage Case Product Number: #880.
Options:
| Model | Color |
| 700-11AAD | Adimals |
| 700-11ABCA | Breast Cancer |
| 700-11ABD | Burgundy |
| 700-11ABDQ | Burgundy Disp pkg |
| 700-11ABK | Black |
| 700-11ABKQ | Black Disp pkg |
| 700-11ADG | Dark Green |
| 700-11ADGQ | Dark Green Disp pkg |
| 700-11AG | Gray |
| 700-11AGP | Gold Plated |
| 700-11AGQ | Gray Disp pkg |
| 700-11AGR | Green |
| 700-11AGRQ | Green Disp pkg |
| 700-11AM | Magenta |
| 700-11AMQ | Magenta Disp pkg |
| 700-11AMT | Medical Theme |
| 700-11AN | Navy |
| 700-11ANQ | Navy Disp pkg |
| 700-11AOR | Orange |
| 700-11AORQ | Orange Disp pkg |
| 700-11APBS | Peter's Blue Swirly |
| 700-11APP | Puzzle Pieces |
| 700-11AR | Red |
| 700-11ARQ | Red Disp pkg |
| 700-11ARB | Royal Blue |
| 700-11ARBQ | Royal Blue Disp pkg |
| 700-11ATL | Teal |
| 700-11ATLQ | Teal Disp pkg |
| 700-11AV | Purple |
| 700-11AVQ | Purple Disp pkg |
| 700-11AN1 | 1 pc Cuff, Adult, Navy |
3 Years (Manometer carries a lifetime calibration warranty)
