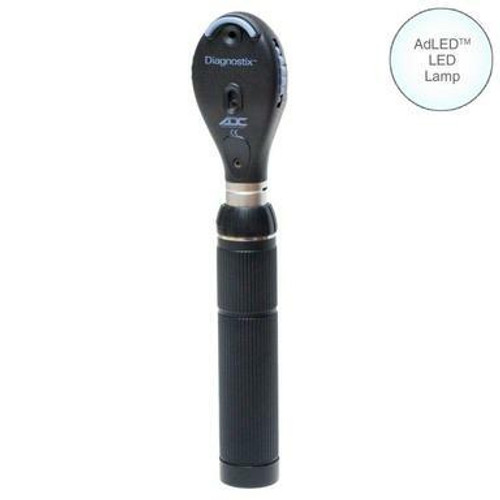

ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope
American Diagnostic Corporation
Cevi Med#: CM28226
ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope
- Includes the ophthalmoscope head, a plug-in rechargeable Li-ion battery handle, and a zippered padded nylon case.
- The top half of the handle unscrews to access the wall plug which is available in US or Euro fittings.
- The ophthalmoscope is a handheld, battery-powered device containing illumination and viewing optics intended to examine the media and the retina of the eye.
Features:
- High-performance aspherical condenser lens reduces corneal reflection.
- Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation).
- Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions.
- Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
- Dust proof.
- Magnified, illuminated aperture viewing window.
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles.
- Anti-theft locking feature is standard.
- 89 viewing lenses from -44 to +45 in single step.
- 28 aperture/filter combinations for improved diagnostic capability.
- Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses.
- The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper.
6 apertures include:
- Slit – used to help determine levels of tumors and lesions.
- Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions.
- Large – standard aperture for a dilated pupil and general examination of the eye.
- Small – provides excellent view of fundus through an undilated pupil.
- Micro spot – allows quick entry into small, undilated pupils.
- Half moon – provides a combination of depth perception and field of view.
3 filters (plus neutral) include:
- Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers.
- Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea.
- Polarizing – virtually eliminates corneal reflection.
Battery Handle Features:
- C-sized handle with 1400mAh Li-ion battery.
- CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip.
- Adtronic electronic rheostatic light intensity control provides infinite continuous control and auto-off feature after two minutes.
- Li-ion battery provides two to three hours continuous use with halogen/xenon lamp, 30 hours use with LED lamp when charged for 24 hours.
- Up to 1,200 charge cycles.
- Universal bayonet mount for compatibility with other brands of 3.5V instrument heads.
Options:
Product # | Option | Configurations |
54122L | Standard | 3.5V Portable Coax Plus Ophthalmoscope with LED Lamp |
54122X | Standard | 3.5V Portable Coax Plus Ophthalmoscope with Halogen/Xenon Lamp |
54122L-EU | European | 3.5V Portable Coax Plus Ophthalmoscope with LED Lamp and European Plug |
54122X-EU | European | 3.5V Portable Coax Plus Ophthalmoscope with Halogen/Xenon Lamp and European Plug |
