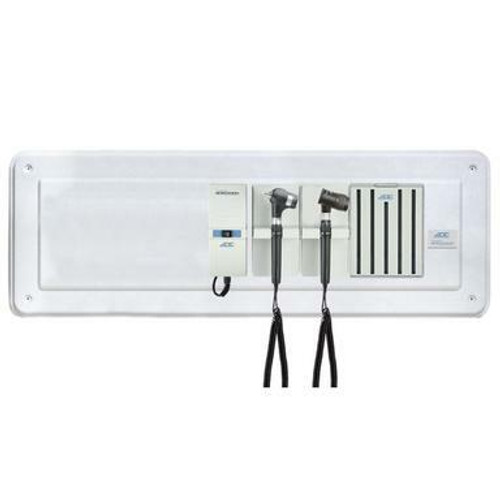

ADC Adstation 5681-35 3.5V Wall PMV Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2

The ADC Adstation 5681-35 3.5V Wall PMV Otoscope/Dermascope Diagnostic Set with Wallboard for ADView 2 includes an ADC Diagnostix 5422 3.5V PMV Otoscope Head, an ADC Diagnostix 5450 3.5V Dermascope Head, a power supply base unit that includes a power switch, two 3.5V handles, an extension module, an ADC 5630 Wall Specula Dispenser, and an ADC Adstation Wallboard that allows you to easily mount your diagnostic set while leaving enough space to add and install an ADC ADView 2 Modular Diagnostic Station.

The Adtemp 429 Non-Contact Infrared Thermometer features an infrared sensor that reads temperature from the middle of the forehead with no skin contact required for a safe and comfortable experience that minimizes the risk of cross-contamination. The infrared sensor simplifies temperature measurement which makes it ideal for screening, and measures the temperature in about one second.

Features:

• The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to mount on to the included ADC Wallboard.
• The ADC Diagnostix 5422 3.5V PMV Otoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.

Specifications:

• Large Wallboard Dimensions: 32.75" x 13.63" x 1" (83.19 cm x 34.62 cm x 2.54 cm).
• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm).
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm).
• Thermometer Specifications:
• Range:
• Fahrenheit: 50 to 122 °F.
• Celcius: 10 to 50 °C.
• Accuracy:
• Fahrenheit: 0.5 °F.
• Celcius: 0.3 °C.
• Response Time: 1 sec.
• Memory: 30x.
• Battery Type: 1.5 V (AAA).
• Battery Life: 2,000 uses.
• Dimensions: 2.06" x 1.75" x 5" (52.4 mm x 44.5 mm x 129.9 mm).
• Weight: 3 oz (87 g).
• Operating Environment: 60.8 to 95 °F (16 to 35 °C).
• Storage Environment: -13 to 131 °F (-25 to 55 °C).

Wall Transformer Power Supply:

• Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
• Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
• Adtronic electronic rheostatic light intensity control provides infinite continuous control.
• Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
• Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
• Base unit contains the power switch and one handle and the extension holds the other handle.
• UL approved.

Measurement Accuracy (Laboratory):

• Body Mode: 50 to 122 °F (10 to 50 °C).
• Object Mode: 32 to 212 °F (0 to 100 °C).
• Body Mode: +/- 0.5 °F, 71.6 to 104 °F (+/- 0.3 °C, 22 to 40 °C).
• Object Mode: < 68 °F +/- 1 °F, > 68 °F +/- 5% (< 20 °C +/- 1 °C, > 20 °C +/- 5%).

Warranty:

• 5 Years (Wall Transformer)
• 2 Years (Instrument Head, Xenon Lamps, and Wallboard)
• Lifetime (LED Lamp)
• 2 Years - Defects in Materials and Workmanship (Thermometer)
