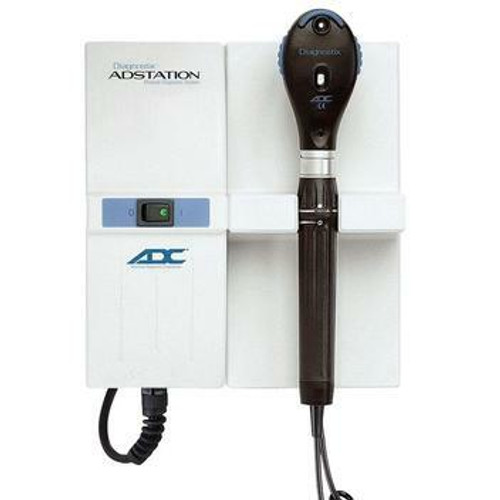

ADC Adstation 5612 3.5V Wall Coax Ophthalmoscope

The ADC Adstation 5612 3.5V Wall Coax Ophthalmoscope includes an ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head and a wall transformer power supply base unit that contains a power switch and one handle. The wall transformer is available with a standard 120V or a 230V power supply with European plug in. The wall transformer is easy to install with included bracket or it may be mounted to ADC wallboard systems. The ADC Diagnostix 5440 3.5V Coax Ophthalmoscope Head is available with a halogen/xenon lamp or an advanced LED lamp.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can be added and includes a wall bracket that swivels through 110° rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Warranty:

• 5 Years (Wall Transformer)
• 2 Years (Instrument Head and Xenon Lamps)
• Lifetime (LED Lamp)
• 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty)

Diagnostix 5440 3.5V Coax Ophthalmoscope Head Features:

• High performance aspherical condenser lens reduces corneal reflection.
• Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s principal).
• Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions.
• Synthetic rubber brow rest facilitates use with practitioner eyeglasses.
• Dust proof.
• Magnified/illuminated aperture viewing window.
• Universal bayonet mount for compatibility with other brands of 3.5v power supply handles.
• Anti-theft locking feature is standard.
• 29 viewing lenses from -35 to plus 40 (Plus 1-10, 12, 15, 20, 40 – Minus 1-10, 15, 20, 25, 30, 35).
• 24 aperture/filter combinations for improved versatility.

6 apertures include:

• Slit – used to help determine levels of tumors and lesions.
• Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions.
• Large - standard aperture for a dilated pupil and general examination of the eye.
• Small - provides excellent view of fundus through an undilated pupil.
• Micro spot- allows quick entry into small, undilated pupils.
• Half moon – provides a combination of depth perception and field of view.

3 filters (plus neutral) include:

• Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
• Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
• Polarizing – virtually eliminates corneal reflection.

ADC Wall Transformer Power Supply Features:

• Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced.
• Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip.
• Adtronic electronic rheostatic light intensity control provides infinite continuous control.
• Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled.
• Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads.
• Up to three single-handle extension units can be added.
• UL approved.

Diagnostix 750W Wall Aneroid Sphygmomanometer Features:

• Large, easy-to-read 6” luminescent dial for high visibility in virtually any light condition.
• 300 mm Hg no-pin stop movement withstands the heaviest use.
• Eight foot length (when extended) of coiled tubing not made with natural rubber latex.

Configurations:

• Adstation Wall Coax Ophthalmoscope with Xenon Lamp (5612X)
• Adstation Wall Coax Ophthalmoscope with LED Lamp (5612L)
• Adstation Wall Coax Ophthalmoscope with Xenon Lamp and Clock Aneroid (5612X-7)
• Adstation Wall Coax Ophthalmoscope with LED Lamp and Clock Aneroid (5612L-7)
• Adstation Wall Coax Ophthalmoscope with Xenon Lamp European Plug (5612X-EU)
• Adstation Wall Coax Ophthalmoscope with LED Lamp European Plug (5612L-EU)
• Adstation Wall Coax Ophthalmoscope with Xenon Lamp and Clock Aneroid European Plug (5612X-7EU)
• Adstation Wall Coax Ophthalmoscope with LED Lamp and Clock Aneroid European Plug (5612L-7EU)

Specifications:

• Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm).
• Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm).

Options and Configurations
