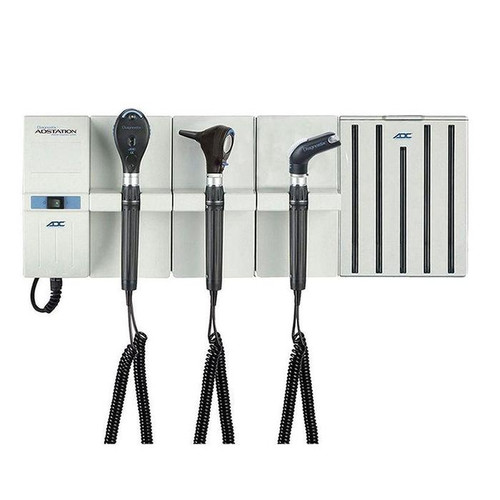

ADC Adstation 5610X Modular Wall System
The 3.5V diagnostic EENT instruments are among the most critical tools for performing a comprehensive physical exam. ADC offers more than 1,000 configurations of the 3.5V Diagnostix Adstation, a wall-mounted solution that puts these essential instruments within easy reach. This page features several basic solutions that start with an otoscope and ophthalmoscope base unit.
Otoscope
With a choice of either a Standard or Panoramic Magnified View (PMV) Otoscope, the ADC's 3.5V offers excellent viewing capabilities and is a superior diagnostic tool. Both choices have Fiber-Optic Light Transmission for an unobstructed view. The Standard Otoscope is made with an optical glass that reduces reflection and provides 3x magnification while the PMV Otoscope has a reflection-optimized, high-performance glass optics that features twice the field of view and 66% greater magnification (11 mm field of view and 5x Magnification).
Ophthalmoscope
The Ophthalmoscope has an option of either Coax and Coax Plus which are both designed ergonomically for high-quality and detailed examination of the eye. Designed with an integrated thumb rest and synthetic rubber brow rest, the Opthalmscopes include dust-free handles and anti-theft locks.
The Coax Ophthalmoscope features high-performance aspherical condenser lens and parallels observational & illuminating light beams that significantly reduces corneal reflection. With it's magnified and illuminated aperture viewing window, the Ophthalmoscope is made with 24 different aperture/filter combinations from the 29 viewing lenses, six apertures, and three filters. Featuring a secondary focus wheel for the correction of ametropias, the Coax Plus Ophthalmoscope has an 89 single-step viewing lens, encompassing full vision range from -44 to +45 diopters. It also has an added Karo grid aperture for easy transfer of observations to graph paper and a total of 28 different aperture/filter combinations.
Throat Illuminator
The Diagnostix 3.5v throat illuminator utilizes PMMA light transmission for an unobstructed view of the oral cavity and throat (PMMA technology is similar to that used in fiber optics). It features a tongue blade holder, providing uninterrupted visuals and facilitating clearer examination of the throat. It also includes an eject button, for convenient and hygienic disposable of used tongue blades. This throat illuminator is available with a choice of standard halogen/xenon lighting, or advanced LED lamps.
Clock Aneroid Sphygmomanometer
The Wall Aneroid Sphygmomanometer is the instrument of choice in an examination and patient rooms across the country. It has been calibrated especially for maximum efficiency and high accuracy, offering a high-quality, heavy-duty aneroid without the risks posed by traditional mercury sphygmomanometers. The device features the Adcuff inflation system; this includes a patented adcuff nylon cuff and bulb and filter system. The six-inch clock dial face is luminescent and can be accurately read from any angle, and the 300mmHh no-stop pin movement withstands heavy usage for reliable results with every reading.
Options:
Product | Code |
Xenon Otoscope/Xenon Ophthalmoscope | 5610X |
LED Otoscope/LED Ophthalmoscope | 5610L |
LED Otoscope/Xenon Ophthalmoscope | 5610A |
Xenon Otoscope/LED Ophthalmoscope | 5610B |
Xenon Otoscope/Xenon Ophthalmoscope with Specula Dispenser | 5610X-3 |
LED Otoscope/LED Ophthalmoscope with Specula Dispenser | 5610L-3 |
LED Otoscope/Xenon Ophthalmoscope with Specula Dispenser | 5610A-3 |
Xenon Otoscope/LED Ophthalmoscope with Specula Dispenser | 5610B-3 |
Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid | 5610X-7 |
LED Otoscope/LED Ophthalmoscope with Clock Aneroid | 5610L-7 |
LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid | 5610A-7 |
Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid | 5610B-7 |
Xenon Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser | 5610X-37 |
LED Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser | 5610L-37 |
LED Otoscope/Xenon Ophthalmoscope with Clock Aneroid and Specula Dispenser | 5610A-37 |
Xenon Otoscope/LED Ophthalmoscope with Clock Aneroid and Specula Dispenser | 5610B-37 |
