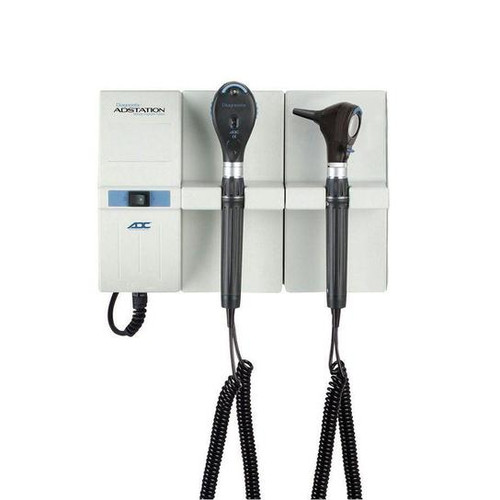

ADC Adstation 56102 3.5V Wall Otoscope/Coax Plus Ophthalmoscope Diagnostic Set

The ADC Adstation 56102 3.5V Wall Otoscope/Coax Plus Ophthalmoscope Diagnostic Set includes an ADC Diagnostix 5420 3.5V Otoscope Head, an ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head, a power supply base unit that includes a power switch, two 3.5V handles, and an extension module.

An optional ADC Diagnostix 750W Wall Aneroid Sphygmomanometer can also be added and includes a wall bracket that swivels through 110° rotation for easy viewing, and an Adcuff Inflation System which includes an Adult and Large Adult Nylon Cuff, an Adflow Bulb and Valve, coiled tubing, and a Cuff Storage Basket.

Features:

• The wall transformer is available with a standard 120V or a 230V power supply with European plug in, and is easy to install with the included bracket or it may be mounted to ADC wallboard systems.
• The ADC Diagnostix 5420 3.5V Otoscope Head and the ADC Diagnostix 5442 3.5V Coax Plus Ophthalmoscope Head is available with a halogen/xenon lamp or an advanced AdLED lamp.
• The ADC 5630 Wall Specula Dispenser can also be added and is a hygienic and practical solution to storing specula and includes five tubes that can store specula

Set Specifications:

• Diagnostic Station Dimensions: 7.88" x 7.12" x 2.95" (20.02 cm x 18.08 cm x 7.5 cm)
• Extension Module Dimensions: 7.88" x 3.94" x 2.95" (20.02 cm x 10.01 cm x 7.5 cm)
• Adcuff Size - Adult: 9" - 15.7" (23 cm - 40 cm)
• Adcuff Size - Large Adult: 13.3" - 19.6" (34 cm - 50 cm)

ADC Wall Transformer Power Supply:

• Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced
• Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip
• Adtronic electronic rheostatic light intensity control provides infinite continuous control
• Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
• Base unit contains the power switch and one handle and the extension holds the other handle
• Up to 2 additional extension modules (3 total) can be added

Warranty:

• 5 Years (Wall Transformer)
• 2 Years (Instrument Head and Xenon Lamps)
• Lifetime (LED Lamp)
• 3 Years (750W Wall Aneroid Sphygmomanometer. Manometer carries a lifetime calibration warranty)

Options and Configurations
