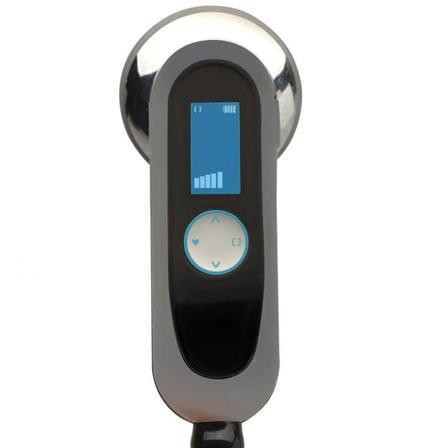

(Discontinued) ADC Adscope 658 Electronic Stethoscope

ADC Adscope 658 Electronic Stethoscope

• Includes a rechargeable Li-ion battery, Micro USB cable, Scope ID tag, and three pairs of Adsoft Plus snap-on silicone eartips (small and large).
• helpful auscultating faint heart and lung sounds
• The bi-lumen headset optimizes the acoustic pathway with heavy-walled tubing, large-diameter aural tubes and a double-leaf tensioning spring

Features:

• Amplifies sounds up to 18X (24 dB).
• Eight-step volume control with last-setting memory.
• Multifunction button controls the frequency mode (bell or diaphragm) and the volume (eight levels).
• Rechargeable Li-ion battery, twenty hours of continuous use on a full charge.
• High-impact thermoplastic housing withstands drops, bumps, and other contact.
• Contact microphone measures 7 mm in diameter, suitable for use on any size patient.

 Specifications:

• Chestpiece Type: Electronic.
• Chestpiece Material: ABS.
• Chestpiece Finish: Multiple.
• Chestpiece Weight: 2.7 oz (77 g).
• Diaphragm Diameter: 2" (5 cm).
• Diaphragm Material: Silicone.
• Diaphragm Type: Specialized.
• Headset Type: Cardiology.
• Headset Material: Stainless.
• Headset Finish: Satin.
• Tubing Length: 19" (48 cm).
• Total Length: 30" (76 cm).
• Total Weight: 6 oz (175 g).

Options:

ADC 2017 Product Catalog

ADC Adscope 658 Electronic Stethoscope Instructions for Use
