Olsen Performance Table Procedure Chair

The PERFORMANCE table is ideal for ambulatory surgeries of different specialties, such as maxillofacial, orthognathic, implant dentistry, and dermatology, also laser application, plastic surgeries, facial aesthetics, ophthalmic, among others. Suitable dimensions to attend special patients such as pregnant, obese and elderly people.

Note: Images are merely illustrative. The displayed image may contain some optional items that are not part of the initial product configuration.

 Features:

• Adjustment of the seat height and tilt up to 30°, backrest and leg extension

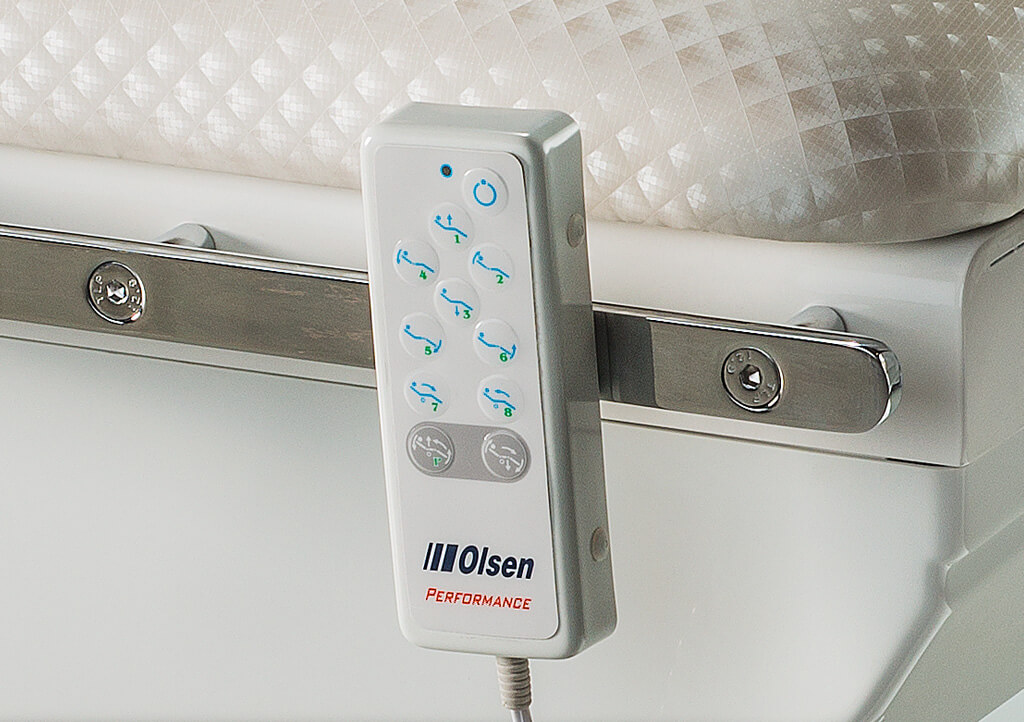

• Hand or foot pedal control
• Features chair, stretcher, Fowler and Trendelenburg positions
• 8 Programmable work positions and Auto return button
• Four Bosch electric motors, spindle drive system
• Emergency back-up batteries (Optional)
• Removable and adjustable armrests and headrest
• Paper roll holder (Optional)
• Four (4) castors, 2 fixed and 2 swivel with locking system

Specifications:

• Seat height adjustment: from (25" to 38")
• Length: 74" to 77" headrest adjustment
• Width: 25"
• Gross weight: 411 pounds (with accessories 572 pounds)
• Net weight: 340 pounds (with accessories 375 pounds)
• Lifting capacity: 440 pounds

Electrical Features:

• Power Supply: 118, 125, 220 and 230 VAC; The voltage must be selected at installation.
• Frequency: 50/60 Hz
• Power cable specification: Flexible cable PP circular 500 V 3 x 1 mm / Tri-polar male plug 10 A - 250 V / Tri-polar female plug 10 A - 250 V

Optional:

• Removable armrests for blood donation/transfusion and hemodialysis
• Wrist Rest
• Instrument tray
• Articulating arm boards
• Mounted LED Operating Light
• Knee crutches (articulated)
• Massage System
• 4th BOSCH motor - tilt up to 30°
• Hand Control (Extra)
• Paper roll holder
• Foot Pedal (Extra)
